Section 2 (Engine Control System [MZR 2.5])
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
CKP sensor signal
CKP sensor signal
WARNING:
This page is about a different variant/trim than selected.
PCM terminals
2W(+)-body ground(-)
Oscilloscope setting
1 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)

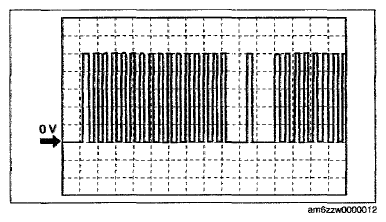

Fig 1: Display CKP Sensor Signal
Courtesy of MAZDA MOTORS CORP.
