Quick Diagnosis Chart

WARNING: This page is about a different variant/trim than selected.

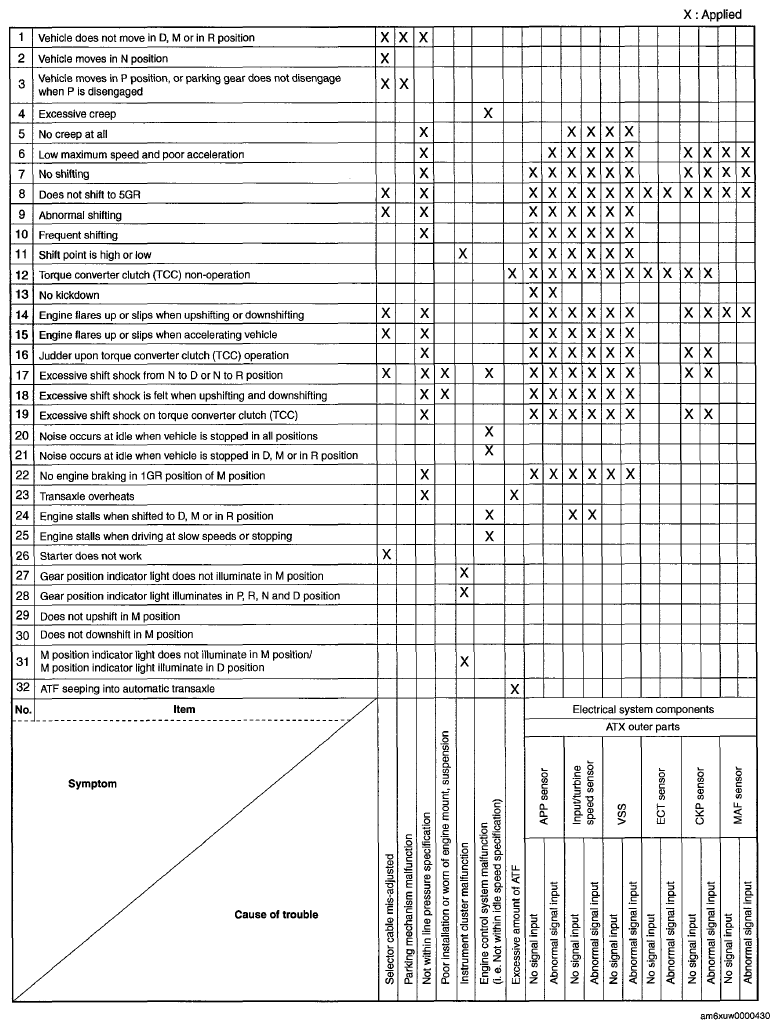

Fig 1: Quick Diagnosis Chart - FS5A-EL (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Quick Diagnosis Chart - FS5A-EL (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Quick Diagnosis Chart - FS5A-EL (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
