Section 19 (Symptom Troubleshooting [Automatic Transaxle - FS5A-El]): Foreword

WARNING: This page is about a different variant/trim than selected.

When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL) indication, AT warning indicator light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
- If a DTC exists, diagnose the applicable DTC inspection. (See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE .)
- If a DTC does not exist, the MIL does not illuminate and the AT warning indicator light illuminate, diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE .)

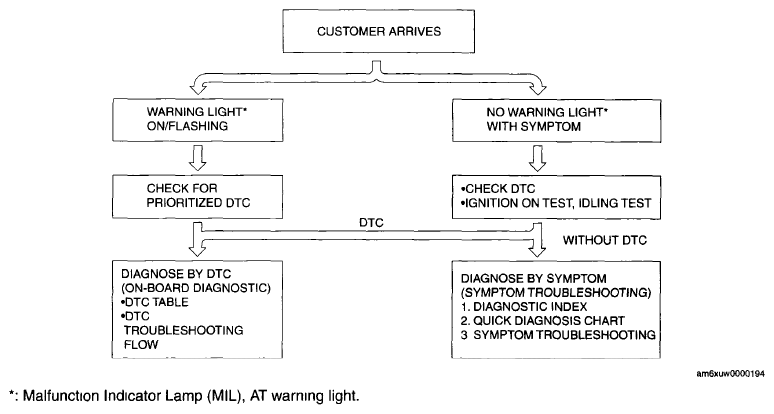

  Fig 1: Malfunction Indicator Lamp Diagnosis Flow Chart (FS5A-EL)
  Courtesy of MAZDA MOTORS CORP.

*: Malfunction Indicator Lamp (MIL), AT warning light.
