Section 19 (Symptom Troubleshooting [Automatic Transaxle - FS5A-El])
>>
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

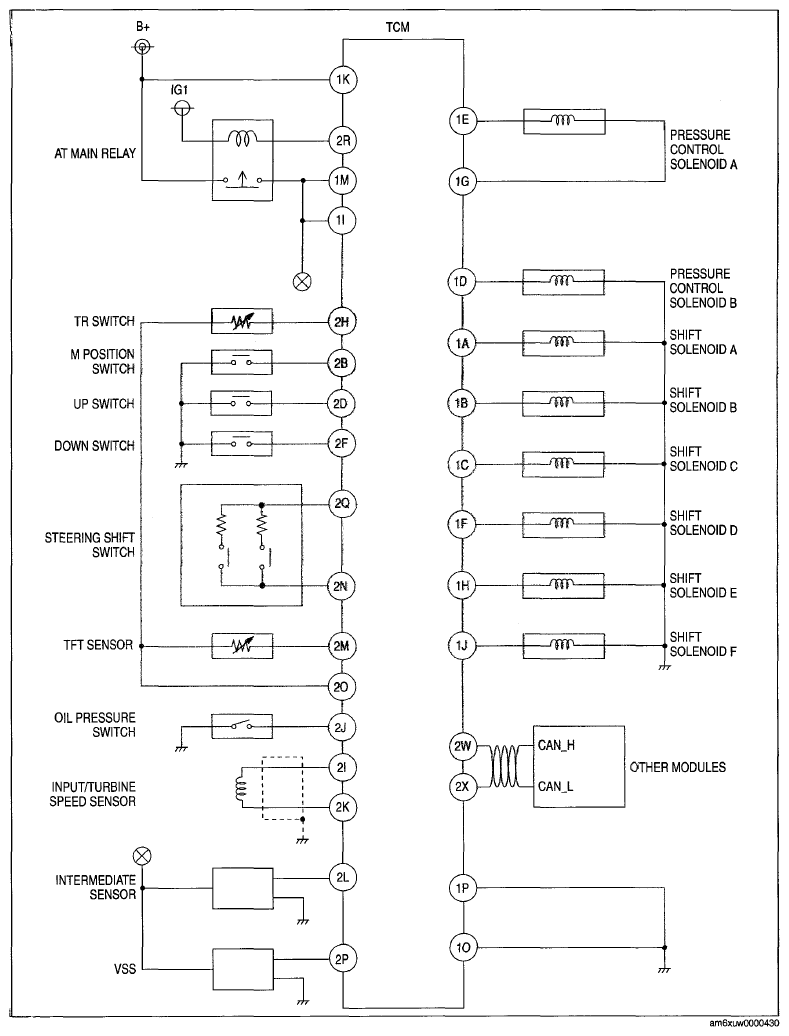

Fig 1: Automatic Transaxle Control System Wiring Diagram (FS5A-EL)
Courtesy of MAZDA MOTORS CORP.
