Oil cooler side

WARNING: This page is about a different variant/trim than selected.

Install the oil hose to the position shown in the illustration.
- Verify that the installation angle of the oil hose is within the range shown in the illustration.

  Fig 1: Oil Hose Installation Position (Oil Cooler Side)
  Courtesy of MAZDA MOTORS CORP.
Install the hose clamp to the position shown in the illustration.
- Verify that the hose clamp is within the marked area of the oil hose.
- Verify that the installation angle of the hose clamp is within the range shown in the illustration.
  NOTE:
  - If the oil hose is to be re-used, install the hose clamp to the impression in the hose left by the previous installation. After installation, apply force to the hose clamp in the direction of the arrows to engage the hose clamp securely.

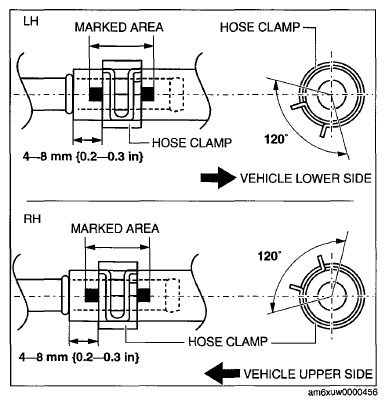

    Fig 2: Hose Clamp Installation Position (Oil Cooler Side)
    Courtesy of MAZDA MOTORS CORP.
Verify that the hose clamp does not interfere with surrounding the accessories.

Fig 3: Locating Hose Clamp (Oil Cooler Side)
Courtesy of MAZDA MOTORS CORP.
