Section 16 (On-Board Diagnostic [Automatic Transaxle F5SA-El])
>>
On-Board Diagnostic System Wiring Diagram
On-Board Diagnostic System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

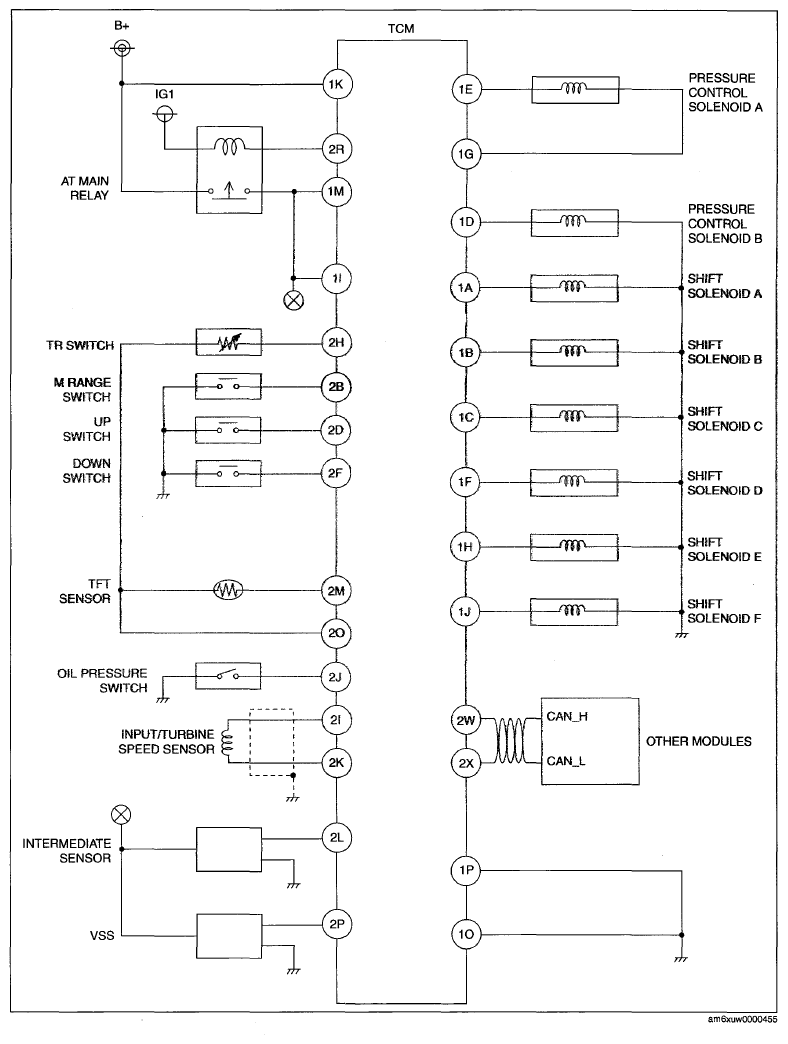

Fig 1: On-Board Diagnostic System Wiring Diagram (FS5A-EL)
Courtesy of MAZDA MOTORS CORP.
