DTC P0884:00: Notes
WARNING: This page is about a different variant/trim than selected.
DTC DESCRIPTION CHART
| DTC P0884:00 |
Battery voltage low |
| DETECTION CONDITION |
- The TCM detects that batter/voltage is 8.25 V or less for 10 s when ATF temperature is 90 °C {194 °F} or less at engine speed 50® rpm or more.
Diagnostic support note;
- The MIL illuminates if the TCM detects the above malfunction conditions during the first drive cycle.
- The AT warning tight Ruminates.
- PENDING CODE es available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|

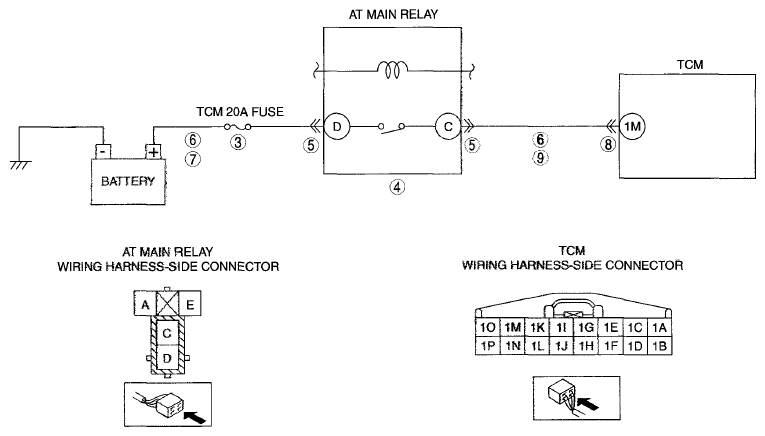

| POSSIBLE CAUSE |
- Melt down TCM 20A fuse
- AT main relay malfunction
- AT main relay connector or terminal malfunction
- Short to GND in wiring harness between battery positive terminal and TCM terminal 1M
- Open circuit in wiring harness between battery positive terminal and TCM terminal 1M
- TCM connector or terminal malfunction
- TCM malfunction
|
|
|
