DTC P0758:00: Notes
WARNING: This page is about a different variant/trim than selected.
DTC DESCRIPTION CHART
| DTC P0758:00 |
Shift solenoid B electrical malfunction |
| DETECTION CONDITION |
- The TCM detects that output voltage to the shift solenoid B is stuck at 0 V or B+ when the solenoid valve operates according to TCM calculation.
Diagnostic support note
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|

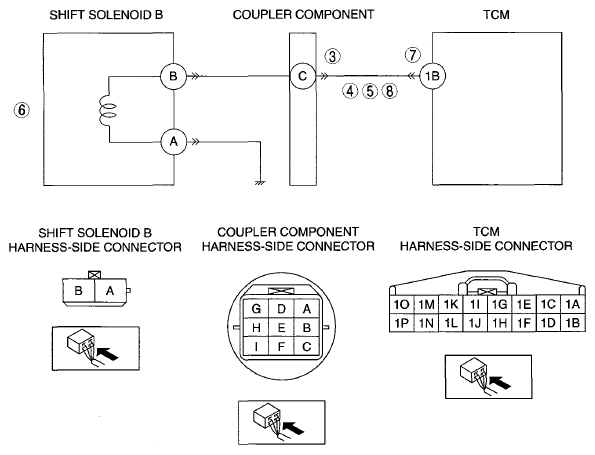

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Short to power supply in wiring harness between shift solenoid B terminal B and TCM terminal 1B
- Short to GND in wiring harness between shift solenoid B terminal B and TCM terminal 1B
- Shift solenoid B malfunction
- TCM connector or terminal malfunction
- Open circuit in wiring harness between shift solenoid B terminal B and TCM terminal 1B
- TCM malfunction
|
|
|
