DTC P0745:00: Notes
WARNING: This page is about a different variant/trim than selected.
DTC DESCRIPTION CHART
| DTC P0745:00 |
Pressure control solenoid A malfunction |
| DETECTION CONDITION |
- The TCM detects that output voltage to the pressure control solenoid A is stuck at 0 V or B+ when the solenoid valve operates according to TCM calculation.
Diagnostic support note
- The MIL does not illuminate.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is not available.
- The DTC is stored in the TCM memory.
|

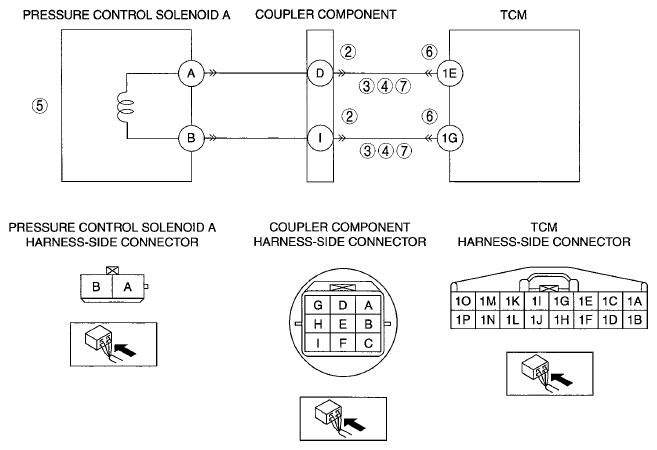

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Short to power supply in wiring harness between pressure control solenoid A terminal A and TCM terminal 1E Short to power supply in wiring harness between pressure control solenoid A terminal B and TCM terminal 1G
- Short to GND in wiring harness between pressure control solenoid A terminal A and TCM terminal 1E
- Short to GND in wiring harness between pressure control solenoid A terminal B and TCM terminal 1G
- Pressure control solenoid A malfunction
- TCM connector or terminal malfunction
- Open circuit in wiring harness between pressure control solenoid A terminal A and TCM terminal 1E
- Open circuit in wiring harness between pressure control solenoid A terminal B and TCM terminal 1G
- TCM malfunction
|
|
|
