DTC P0712:00: Notes

WARNING: This page is about a different variant/trim than selected.
DTC DESCRIPTION CHART

DTC P0712:00 TFT sensor circuit low input
DETECTION CONDITION
  • The TCM detects that input voltage from the TFT sensor is 0.12 V or less for 150 s.

    Diagnostic support note

  • The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
  • The AT warning light illuminates.
  • PENDING CODE is available.
  • FREEZE FRAME DATA is available.
  • The DTC is stored in the TCM memory.
POSSIBLE CAUSE
  • Coupler component connector or terminal malfunction
  • Short to GND in wiring harness between TFT sensor and TCM terminal 2M
  • TFT sensor malfunction
  • TCM connector or terminal malfunction
  • TCM malfunction

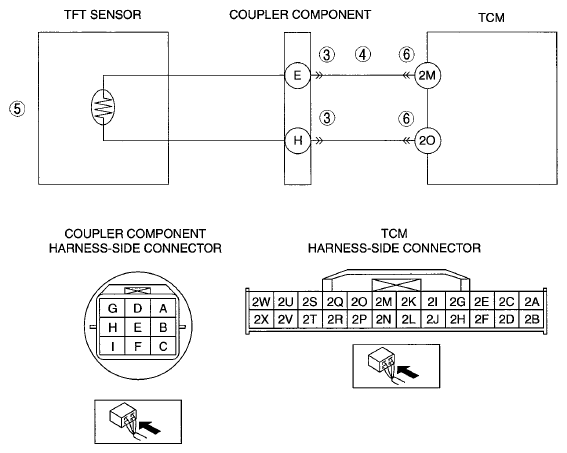

G07621206
