DTC P0707:00: Notes
WARNING: This page is about a different variant/trim than selected.
DTC DESCRIPTION CHART
| DTC P0707:00 |
TR switch circuit low input |
| DETECTION CONDITION |
- The TCM detects that input voltage from the TR switch is 0.49 V or less for 5 s when the following condition is met.
- Input voltage from the battery: 9 V or more
Diagnostic support note
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| POSSIBLE CAUSE |
- TR switch connector or terminal malfunction

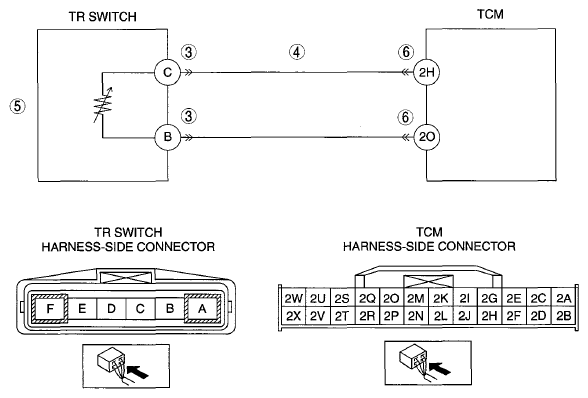

- Short to GND in wiring harness between TR switch terminal C and TCM terminal 2H
- TR switch malfunction
- TCM connector or terminal malfunction
- TCM malfunction
|
|
|
