DTC P0706:00: Notes
WARNING: This page is about a different variant/trim than selected.
DTC DESCRIPTION CHART
| DTC P0706:00 |

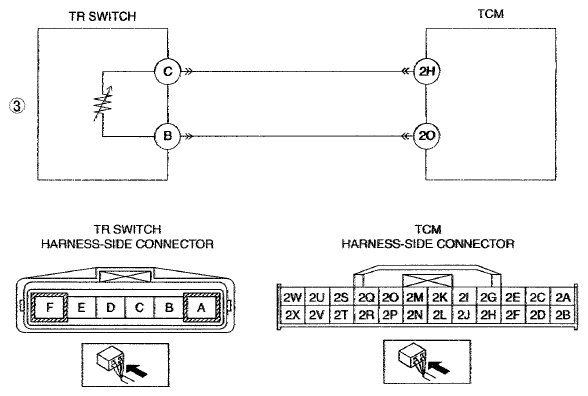

TR switch circuit range/performance |
| DETECTION CONDITION |
- The TCM detects no position signal for 100 s when the following conditions are met.
- Input voltage from the TR switch: 0.49-4.78 V
- Vehicle speed: 20 km/h {13 mph} or more
Diagnostic support note
- The MIL illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM.
- The AT warning light illuminates.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| POSSIBLE CAUSE |
- TR switch misadjustment
- TR switch malfunction
- TCM malfunction
|
|
|
