No. 4 Engine Mount Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SST using the following procedure.
    CAUTION:
    • Refer to the procedures for the basic handing procedure.
    Fig 1: Front Foot No. 2 (Adapter For Front Shaft), Front Shaft, Side Bar And Rear Shaft
    G07625806Courtesy of MAZDA MOTORS CORP.
    1. As shown in the illustration, set the rear shafts of the SST  to the left and right shock absorber installation nut.

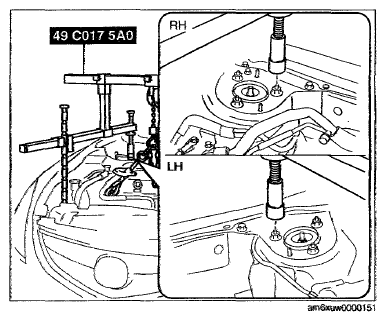

      Fig 2: Setting Rear Shafts Of SST To Left And Right Shock Absorber Installation Nut
      G07625807Courtesy of MAZDA MOTORS CORP.
    2. Install front foot No. 2 to the left/right front shaft of the SST  , then align the groove of the front shaft of the SST  with the folded up part of the vehicle as shown in the illustration.
    3. Adjust the positions of the SST  side bars so that they are the same height (left and right) and horizontal.
    4. Make sure each joint is securely tightened.

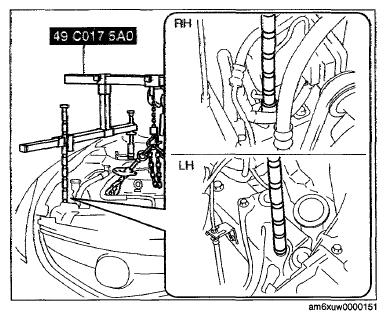

    Fig 3: Installing Front Foot No. 2 To Left/Right Front Shaft Of SST
    G07625808Courtesy of MAZDA MOTORS CORP.
  2. Support the engine using the SST.
  3. Remove the No. 4 engine mount rubber and bracket.
Fig 4: Supporting Engine Using SST
G07625809Courtesy of MAZDA MOTORS CORP.
