Manual Transaxle Removal Note

WARNING: This page is about a different variant/trim than selected.

WARNING:

Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

Adjust the SST and lean the engine toward the transaxle.

Fig 1: Leaning Engine Assembly Toward Transaxle Using SST
Courtesy of MAZDA MOTORS CORP.
Remove the bolt securing the brake hose to the bracket as shown in the illustration, and disconnect brake hose from the bracket.

Fig 2: Removing Brake Hose Bolt
Courtesy of MAZDA MOTORS CORP.
Support the transaxle on a jack.
Remove the transaxle mounting bolts.
Remove the transaxle.

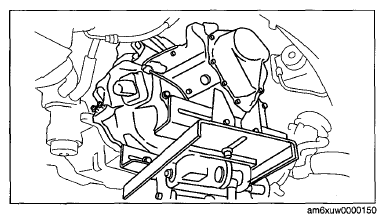

Fig 3: Supporting Transaxle On Jack

Courtesy of MAZDA MOTORS CORP.
