Clutch Waster Cylinder Disassembly/Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
- Disassemble "in the order indicated" in the table.
- Assemble in the reverse order of disassembly.

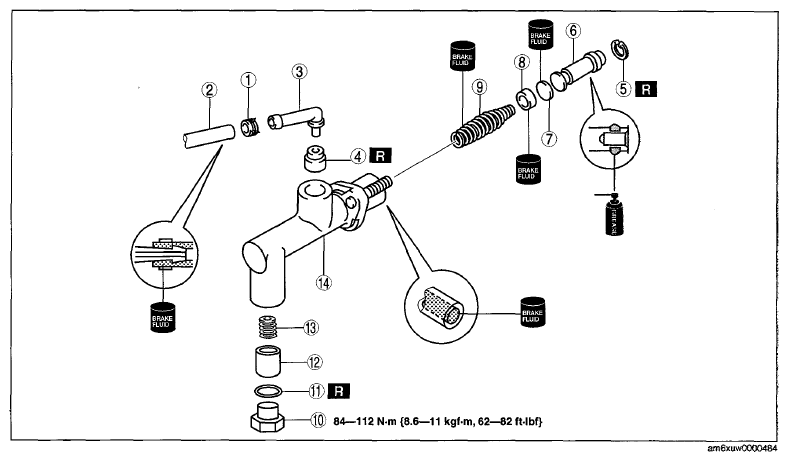

PARTS DESCRIPTION CHART
| 1 | Clip |
| 2 | Hose |
| 3 | Joint |
| 4 | Bushing |
| 5 | Snap ring (See SNAP RING DISASSEMBLY/ASSEMBLY NOTE .) |
| 6 | Piston and secondary cap component |
| 7 | Spacer |
| 8 | Primary cap |
| 9 | Return spring |
| 10 | Joint bolt |
| 11 | Gasket |
| 12 | One-way valve piston |
| 13 | One-way valve spring |
| 14 | Clutch master cylinder body |
