Clutch Release Cylinder Removal/Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If clutch fluid gets on a painted surface, it will cause the paint to peel. Be careful not to spill clutch fluid on the painted surfaces. Wash off any spilled clutch fluid with water immediately.

NOTE:

If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
If clutch system-related hydraulic parts are removed, supply clutch fluid, bleed air, and inspect for fluid leakage after the installation. (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT .)

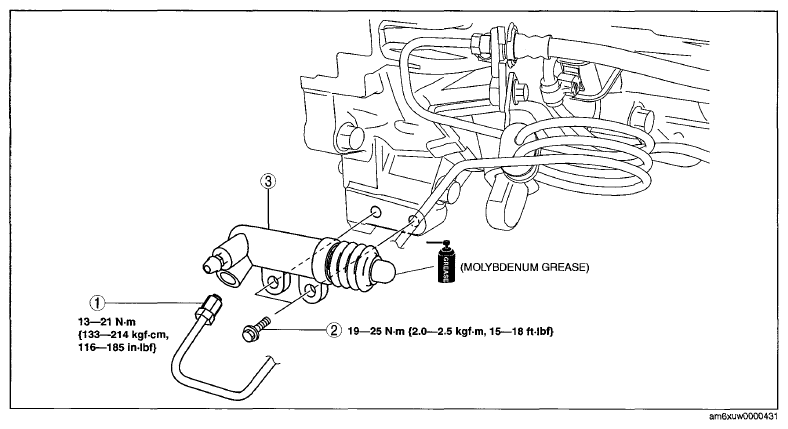

Fig 1: Clutch Release Cylinder And Clutch Pipe With Bolt With Torque Specification

G07621241

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Clutch pipe
2	Bolt
3	Clutch release cylinder
