Clutch Release Cylinder Disassembly/Assembly
WARNING: This page is about a different variant/trim than selected.

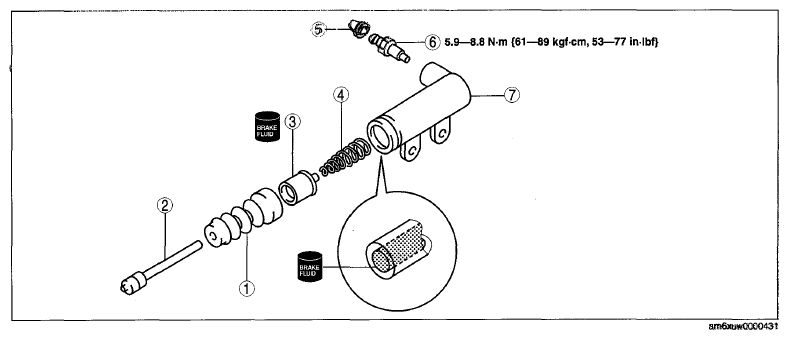

- Disassemble in the order indicated in the table,
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP. PARTS DESCRIPTION CHART
| 1 |
Boot |
| 2 |
Push rod |
| 3 |
Piston and cap |
| 4 |
Return spring |
| 5 |
Bleeder cap |
| 6 |
Bleeder screw |
| 7 |
Release cylinder body |
