Clutch Pedal Disengagement Point
WARNING: This page is about a different variant/trim than selected.
- Apply the parking brake and fix the front and rear of the wheels with the wheel chocks.
- Start the engine.
- With the clutch pedal depressed, move the shift lever to the position just before engaging the reverse gear. (Do not shift completely to reverse position)
- Gradually release the clutch pedal and then hold it at the point where the sound of gear-grinding begins (clutch disengagement point).
- Measure distance A from the clutch disengagement point to the position where the pedal has returned completely (not depressed), and verify that the measurement is within the specification.
- If distance A, distance B or the clutch pedal full stroke is out of specification, adjust the pedal height or the clutch pedal free play to specification.

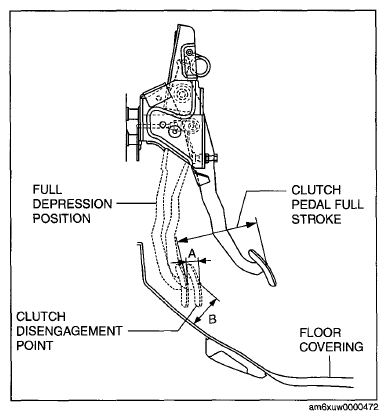

Distance A, from clutch disengagement point to clutch pedal full depression position (Reference value)
20 mm {0.79 in} or more
Distance B, from clutch disengagement point to floor covering (Reference value)
58.5 mm {2.30 in}
Clutch pedal full stroke (Reference value)
135.6 mm {5.339 in}
