Battery Removal/Installation [MZR 2.5]: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

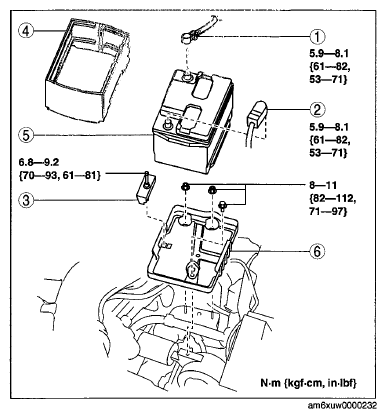

BATTERY PARTS REFERENCE CHART
| 1 | Negative battery cable |
| 2 | Positive battery cable |
| 3 | Battery clamp (See BATTERY CLAMP INSTALLATION NOTE .) |
| 4 | Battery box |
| 5 | Battery |
| 6 | Battery tray |
