Exhaust System Insulator Removal/Installation Note
WARNING: This page is about a different variant/trim than selected.
- Remove the exhaust system insulator in the order shown in the illustration.
- Install in the reverse order of removal.

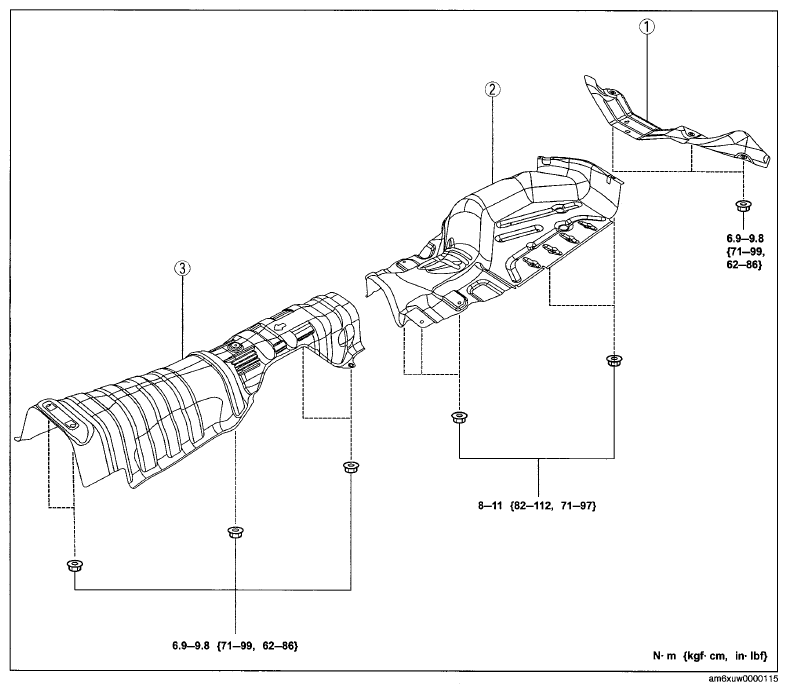

Courtesy of MAZDA MOTORS CORP. EXHAUST SYSTEM INSULATOR COMPONENTS REMOVAL SEQUENCE
| 1 |
Insulator (rear) |
| 2 |
Insulator (middle) |
| 3 |
Insulator (front) |
