Section 1 (On-Board Diagnostic [Engine Control System MZR 2.5])
>>
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

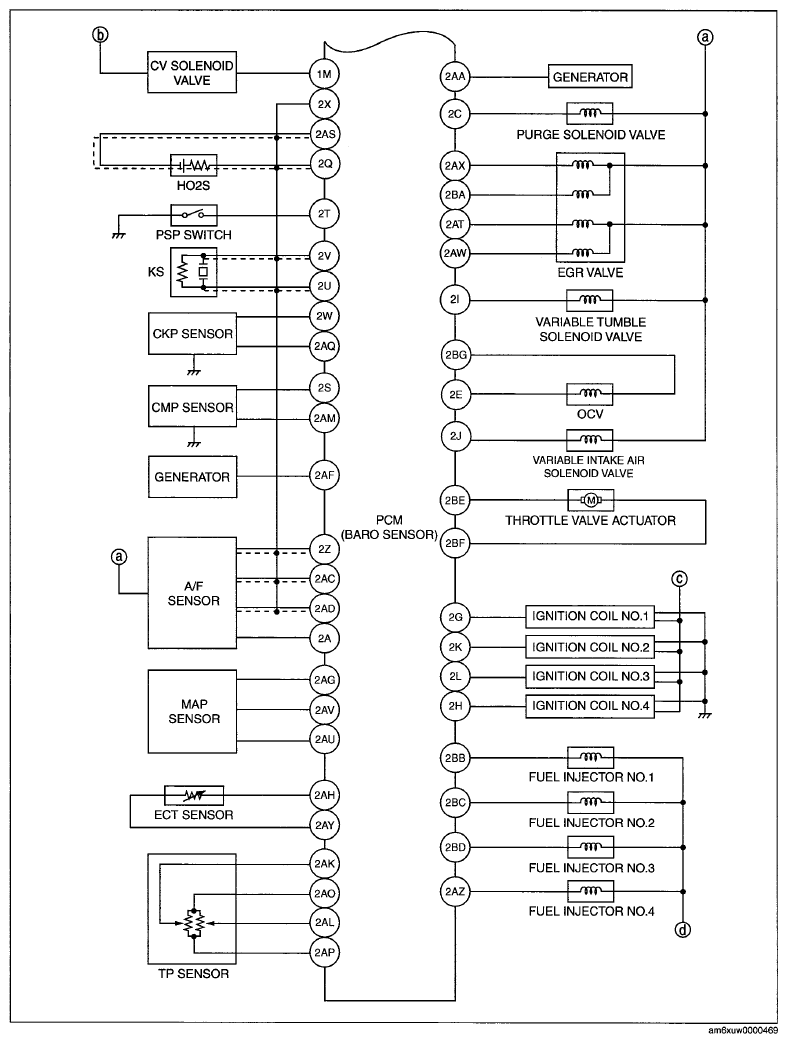

Fig 1: On-Board Diagnostic Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

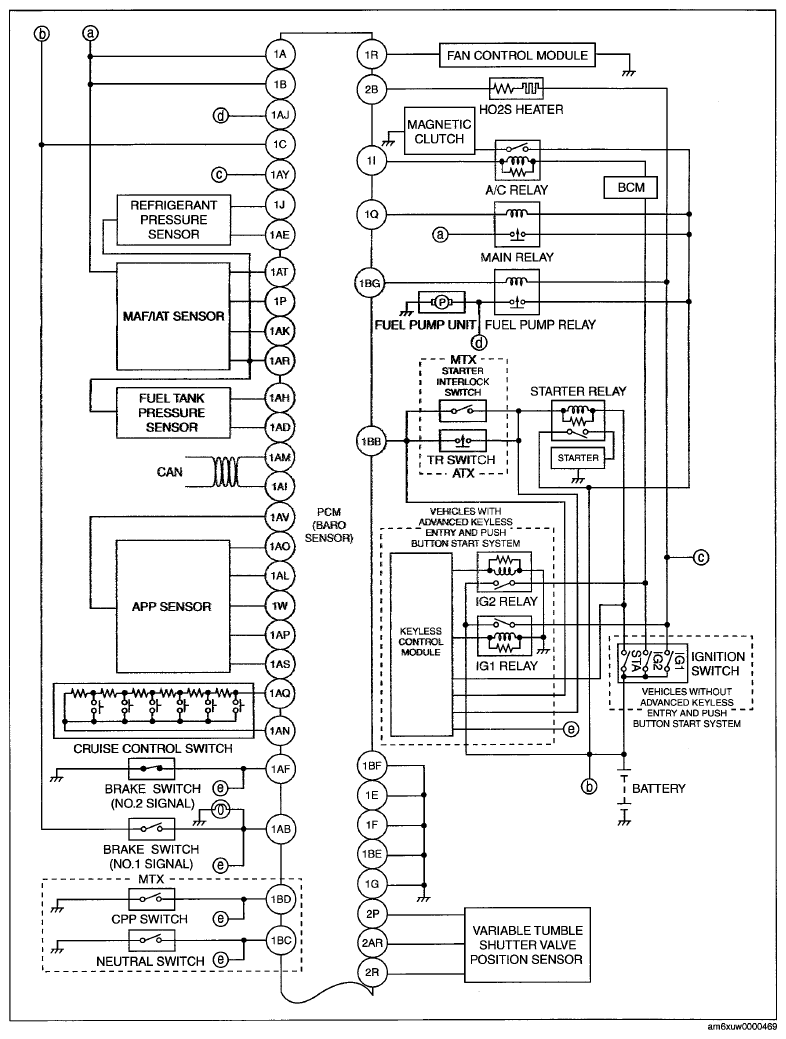

Fig 2: On-Board Diagnostic Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
