Ignition Coil Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  3. Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
    CAUTION:
    • Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.
    • Specified grease: Motorcraft XG-3A
  5. Install in the reverse order of removal.
PARTS REFERENCE CHART

1 Connector
2 Ignition coil

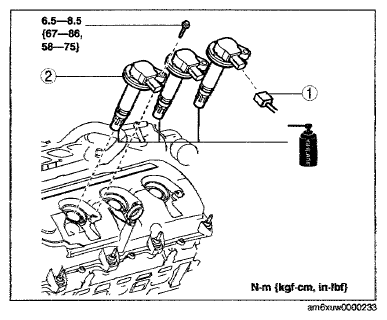

Fig 1: Ignition Coil And Connector
G07620666Courtesy of MAZDA MOTORS CORP.
