Brake Hose (Front) Removal/Installation

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See BRAKE FLUID AIR BLEEDING .)

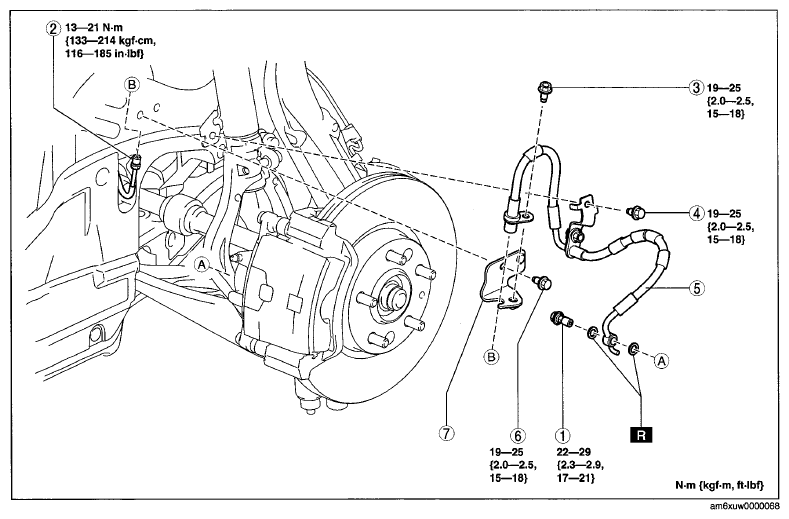

    Fig 1: Brake Hose (Front) Components With Torque Specification
    G07621132Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION CHART

    1 Bolt
    2 Brake pipe
    3 Bolt
    4 Bolt
    5 Brake hose
    6 Bolt
    7 Bracket
