Trunk End Trim Removal/Installation

  1. Open the trunk lid.
  2. Remove the trunk mat.
  3. Remove the trunk board.
  4. Remove the fasteners A.

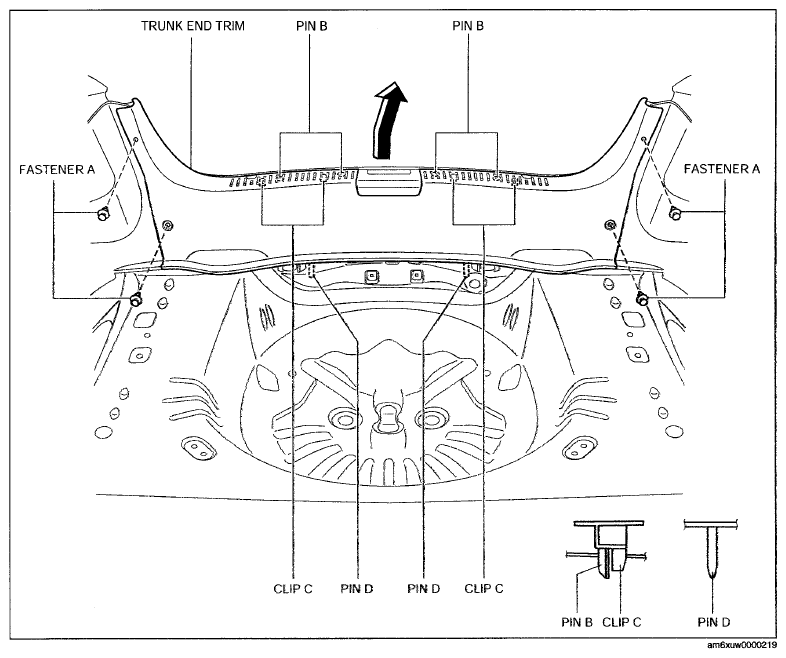

    Fig 1: Pulling Trunk End Trim
    G07622300Courtesy of MAZDA MOTORS CORP.
  5. Pull the trunk end trim in the direction of the arrow shown in the illustration and remove it while detaching the pins B, D and clips C.
  6. Install in the reverse order of removal.
