Side Panel Removal/Installation

  1. Pull the side panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the clips A, B, C and guide D.

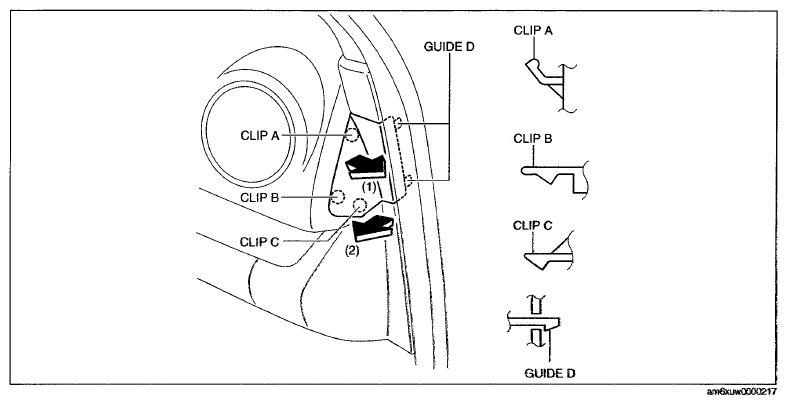

    Fig 1: Pulling Side Panel
    G07622256Courtesy of MAZDA MOTORS CORP.
  2. Remove the side panel.
  3. Install in the reverse order of removal.
