Meter Hood Removal/Installation

  1. Pull the meter hood in the direction of the arrow shown in the illustration and remove it while detaching the clips A, tab B and blind rubber.

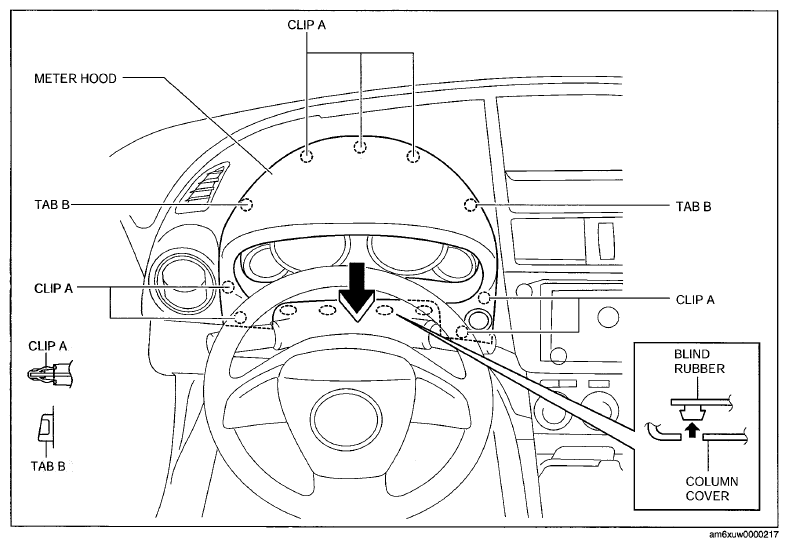

    Fig 1: Pulling Meter Hood
    G07622257Courtesy of MAZDA MOTORS CORP.
  2. Remove the meter hood.
  3. Install in the reverse order of removal.
