Inner Garnish Removal/Installation

  1. Disconnect the negative battery cable.
  2. Pull the inner garnish in the direction of the arrow shown in the illustration and remove it while detaching clips and tab.

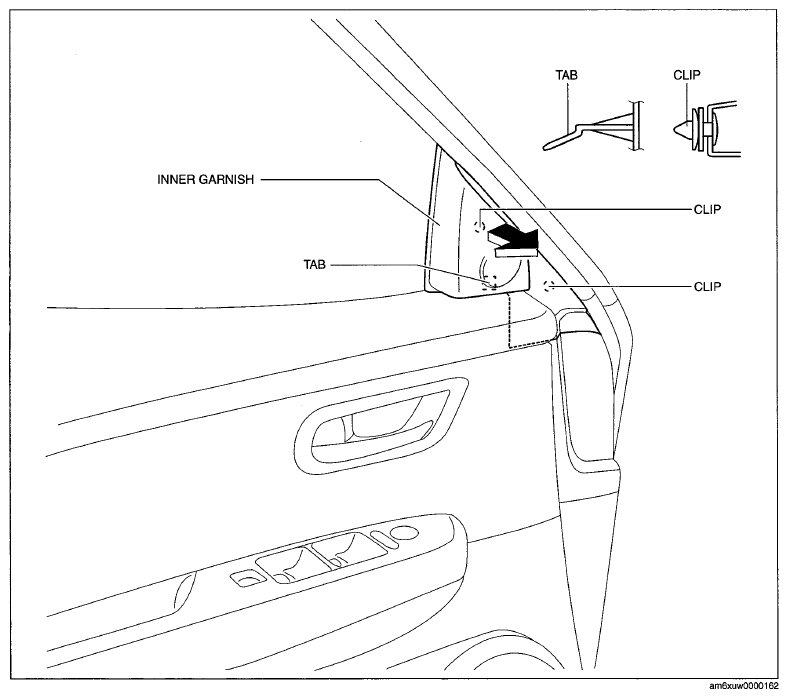

    Fig 1: Pulling Inner Garnish
    G07622296Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the front tweeter connector. (Vehicles with tweeter)
  4. Install in the reverse order of removal.
