Dashboard Under Cover Removal/Installation

  1. Detach clip A, pin B and guide C by pulling them in the direction of the arrow (1), (2).

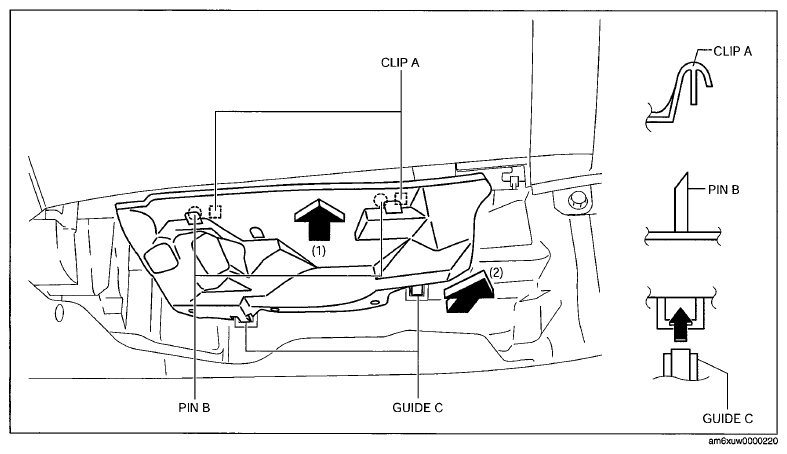

    Fig 1: Detaching Dashboard Under Cover Clip A, Pin B And Guide C
    G07622265Courtesy of MAZDA MOTORS CORP.
  2. Remove the dashboard under cover.
  3. Install in the reverse order of removal.
