A-Pillar Trim Removal/Installation

Partially peel back the seaming welt.
Pull the upper end of the A-pillar trim in the direction of the arrow (1), (2) shown in the illustration and remove clip A, B and tab C.

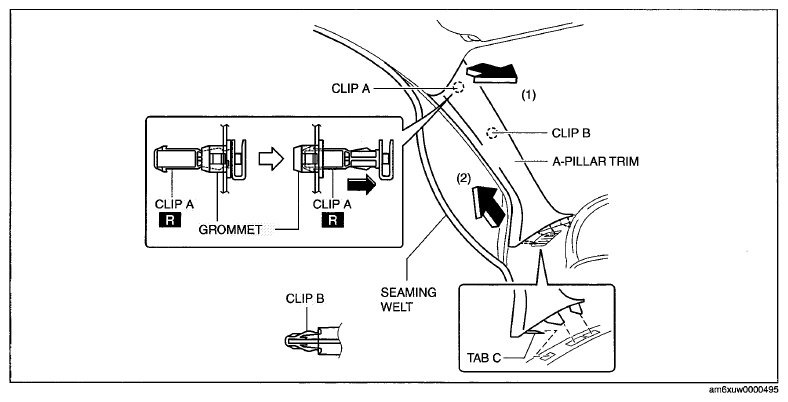

Fig 1: Pulling Upper End Of A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When pulling out the A-pillar trim, be careful not to damage the tabs.
When installing the A-pillar, Install the new clip A to the A-pillar trim in advance.
Install in the reverse order of removal.
