Splash Shield Removal/Installation

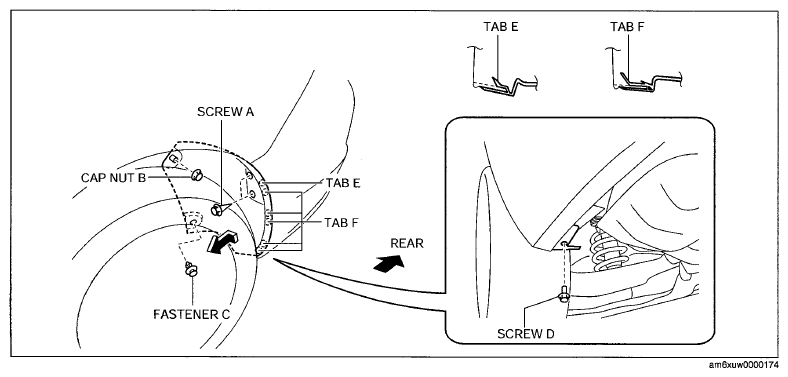

- Remove the screw A, D, cap nut B and fastener C.
- Pull the splash shield in the direction of the arrow shown in the illustration then remove the tab E and F.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
