Floor Under Cover Removal/Installation

  1. Remove the bolts, cap nuts, nuts and fasteners.

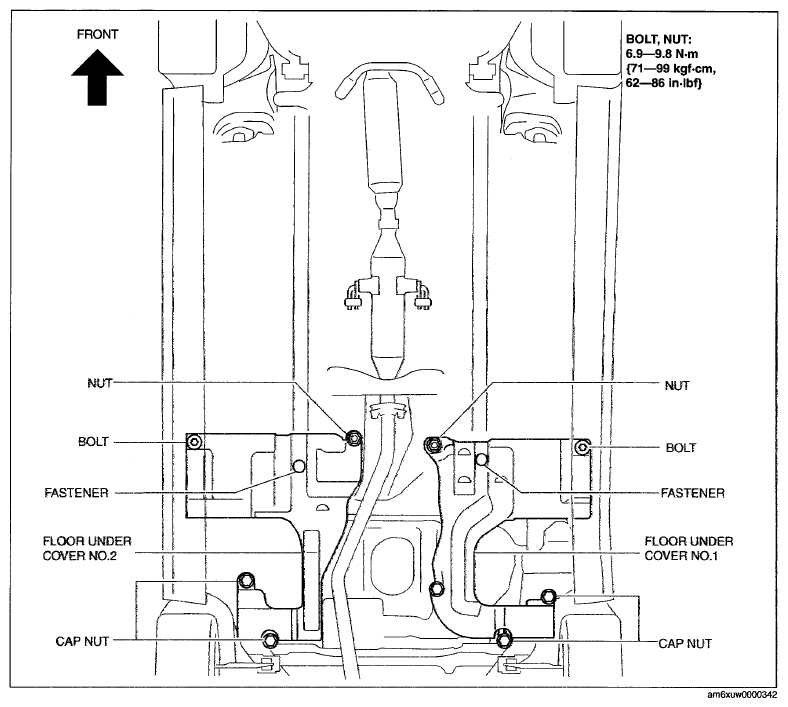

    Fig 1: Removing Floor Under Cover Bolts, Cap Nuts, Nuts And Fasteners
    G07622232Courtesy of MAZDA MOTORS CORP.
  2. Remove the floor under cover and remove it while detaching the tabs.
    CAUTION:
    • Be careful not to damage the floor under cover during removal.
  3. Install in the reverse order of removal.
