Aerodynamic Under Cover No. 1 Removal/Installation

  1. Remove the bolts A and clip B.

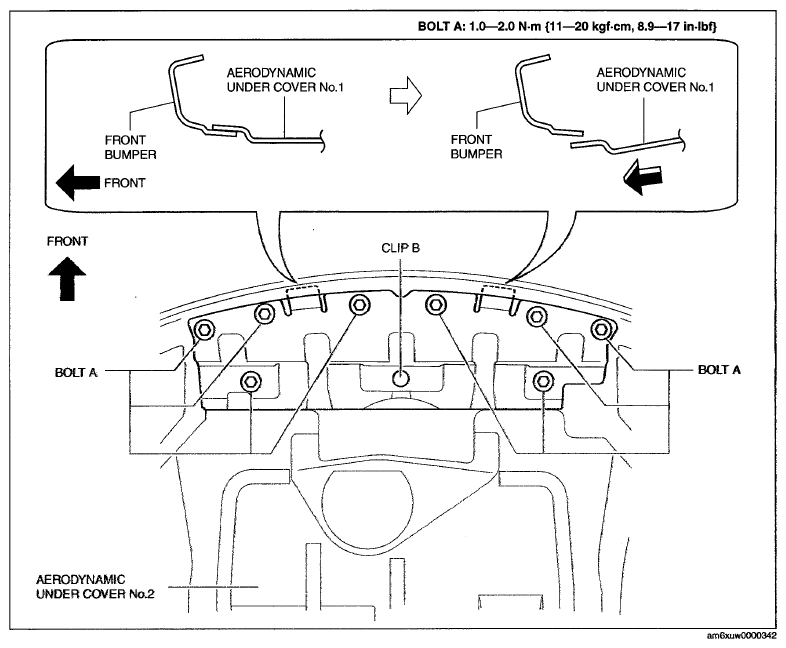

    Fig 1: Removing Aerodynamic Under Cover No. 1 Bolts A And Clip B
    G07622230Courtesy of MAZDA MOTORS CORP.
  2. Set aside the aerodynamic under cover No. 1 from the front bumper, then remove the aerodynamic under cover No. 1 in the direction of the arrow shown in the illustration.
    CAUTION:
    • Be careful not to damage the aerodynamic under cover No. 1 during removal.
  3. Install in the reverse order of removal.
