Washer Tank Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

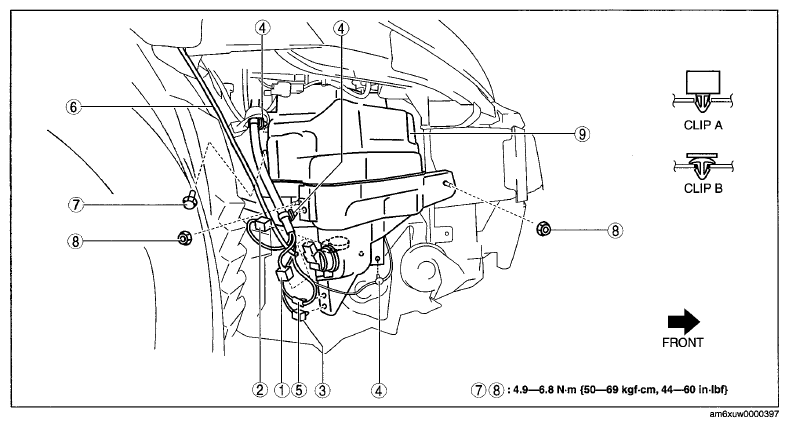

    Fig 1: Washer Tank Components
    G07622452Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION CHART

    1 Windshield washer motor connector
    2 Washer fluid-level sensor connector
    3 Vehicles connector
    4 Clip B
    5 Clip A
    6 Windshield washer hose
    7 Bolt
    8 Nut
    9 Washer tank
  4. Install in the reverse order of removal.
