Quick Diagnostic Chart [Instrument Cluster]

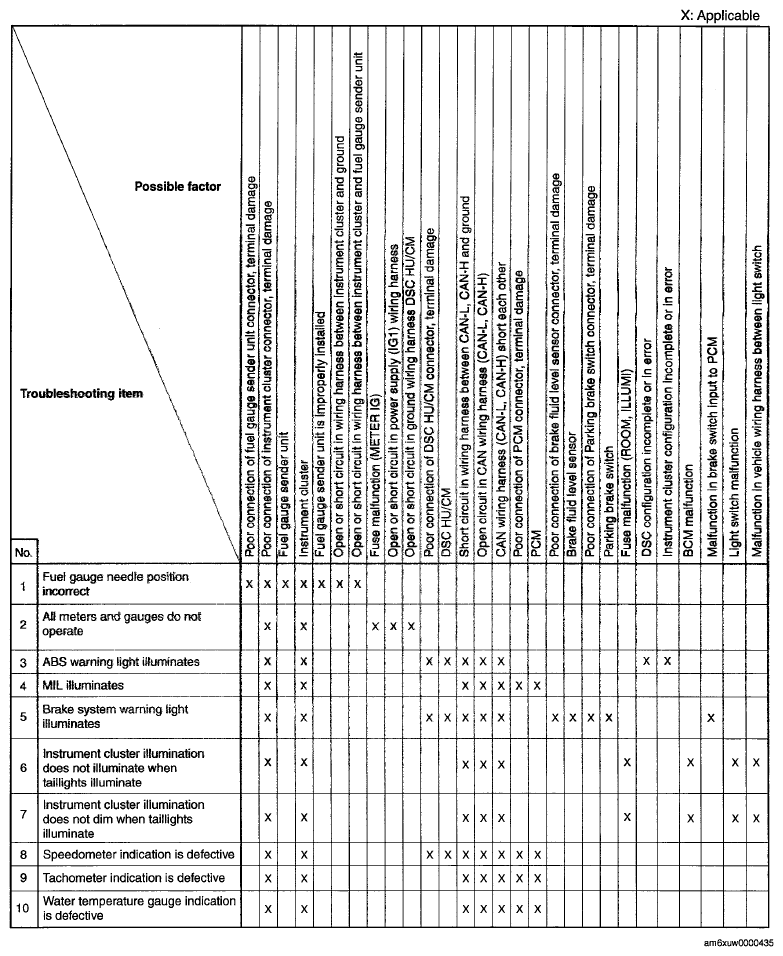

Fig 1: Quick Diagnostic Chart (Instrument Cluster)

G07621791

Courtesy of MAZDA MOTORS CORP.
