On-Board Diagnostic Wiring Diagram [Instrument Cluster]
On-Board Diagnostic Wiring Diagram [Instrument Cluster]

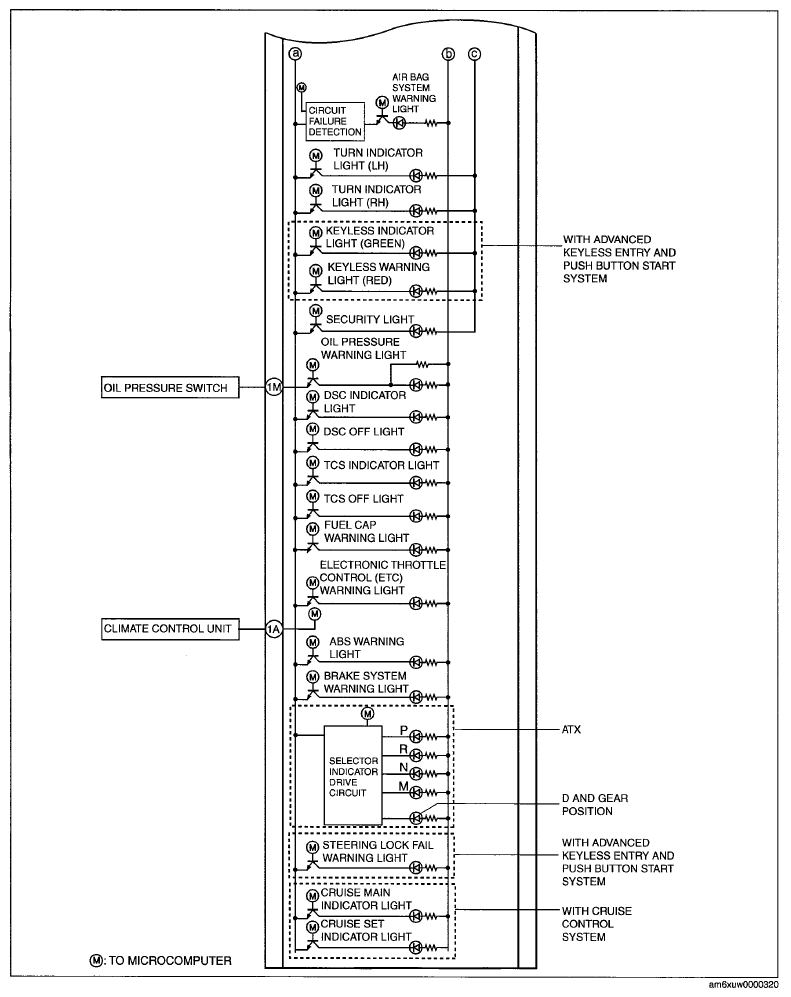

Fig 1: On-Board Diagnostic Wiring Diagram - Instrument Cluster (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

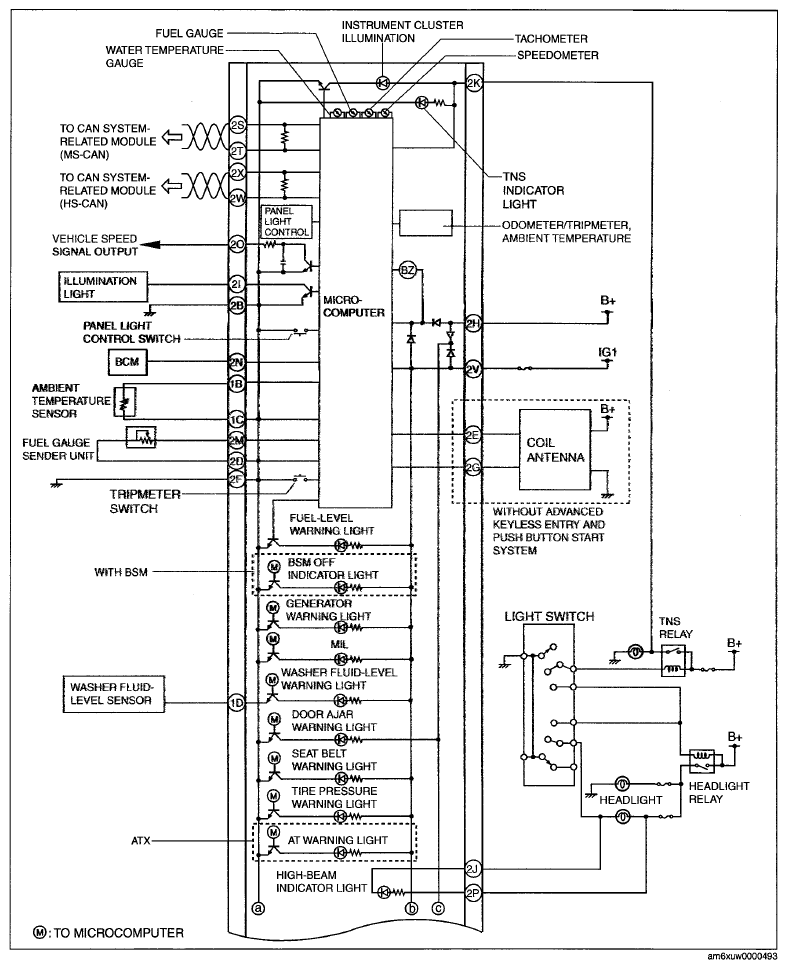

Fig 2: On-Board Diagnostic Wiring Diagram - Instrument Cluster (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
