Vehicles With Advanced Keyless Entry and Push Button Start System
DTC U3003:16 [INSTRUMENT CLUSTER] DETECTION CONDITIONS & POSSIBLE CAUSES
| DESCRIPTION |
Instrument cluster power supply voltage is low |
| DETECTION CONDITION |
Instrument cluster power supply voltage less than 10 V |
| POSSIBLE CAUSE |
- Fuse malfunction
- Battery malfunction
- Generator malfunction
- Connector or terminal malfunction
- Relay block malfunction

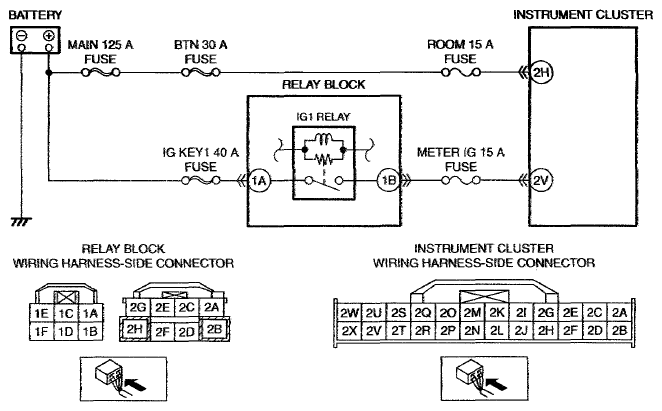

- Open circuit in the wiring harness between battery positive terminal and instrument cluster terminal 2H
- Open circuit in the wiring harness between battery positive terminal and relay block terminal 1A
- Short to ground in the wiring harness between battery positive terminal and instrument cluster terminal 2H
- Short to ground in the wiring harness between battery positive terminal and relay block terminal 1A
- Short to ground in the wiring harness between relay block terminal 1B and instrument cluster terminal 2 V
- Open circuit in the wiring harness between relay block terminal 1B and instrument cluster terminal 2V
- Instrument cluster malfunction
|
|
|
