Water temperature gauge

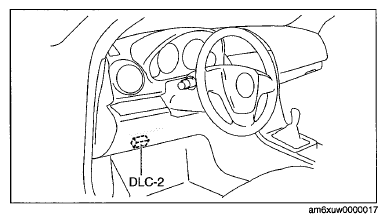

- Connect the M-MDS (IDS) to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the IDS.
- When using the IDS (laptop PC)
- Select "DataLogger".
- Select "Modules".
- Select "IC".
- Verify that it is displayed according to the table using "ECT_GAUGE".
- If the water temperature gauge does not move or the indication is not within the allowable range, inspect the related wiring harnesses.
- If the related wiring harnesses are normal, replace the instrument cluster.
M-MDS FUNCTION CHART
| M-MDS display | Instrument cluster display |
|---|---|
| C (50 DegC) | Engine coolant temperature gauge needle moves to C |
| H (128 DegC) | Engine coolant temperature gauge needle moves to H |
| Off | Engine coolant temperature gauge needle moves to lower area |
