Backup Lamp Switch: Testing and Inspection

BACK-UP LIGHT SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No.2 Removal/Installation

3. Disconnect the back-up light switch connector.

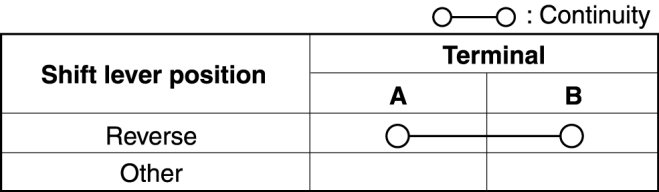

4. Verify that the continuity between the back-up light switch terminals is as indicated in the table.






- If not as indicated in the table, replace the back-up light switch.
