Front Scuff Plate Removal/Installation

FRONT SCUFF PLATE REMOVAL/INSTALLATION

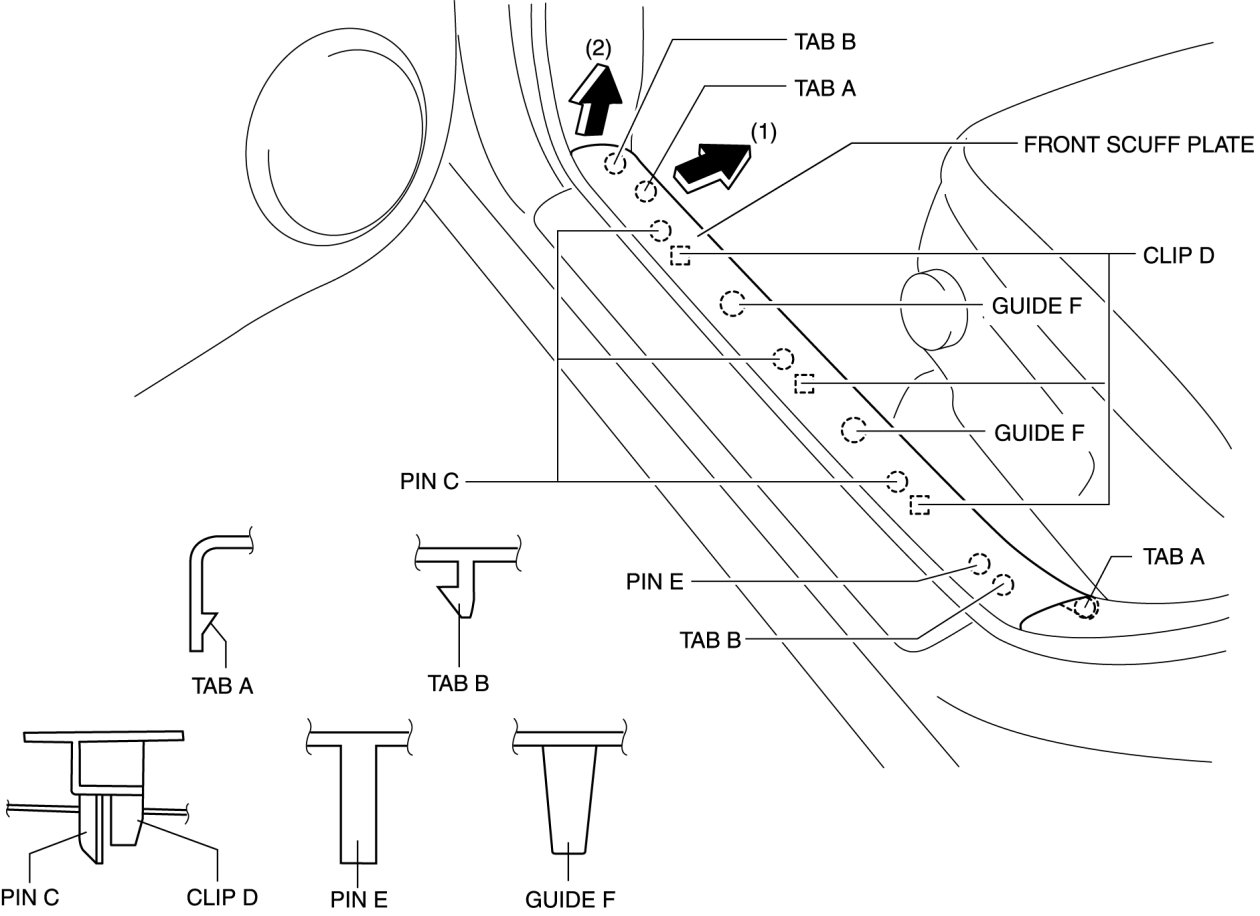

1. Detach tabs A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach tabs B, pins C, clips D, pin E and guides F while pulling in the direction of the arrow (2).






2. Remove the front scuff plate.

3. Install in the reverse order of removal.
