No. 7 No Cool Air - Manual Air Conditioner

NO.7 NO COOL AIR [MANUAL AIR CONDITIONER]





- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.

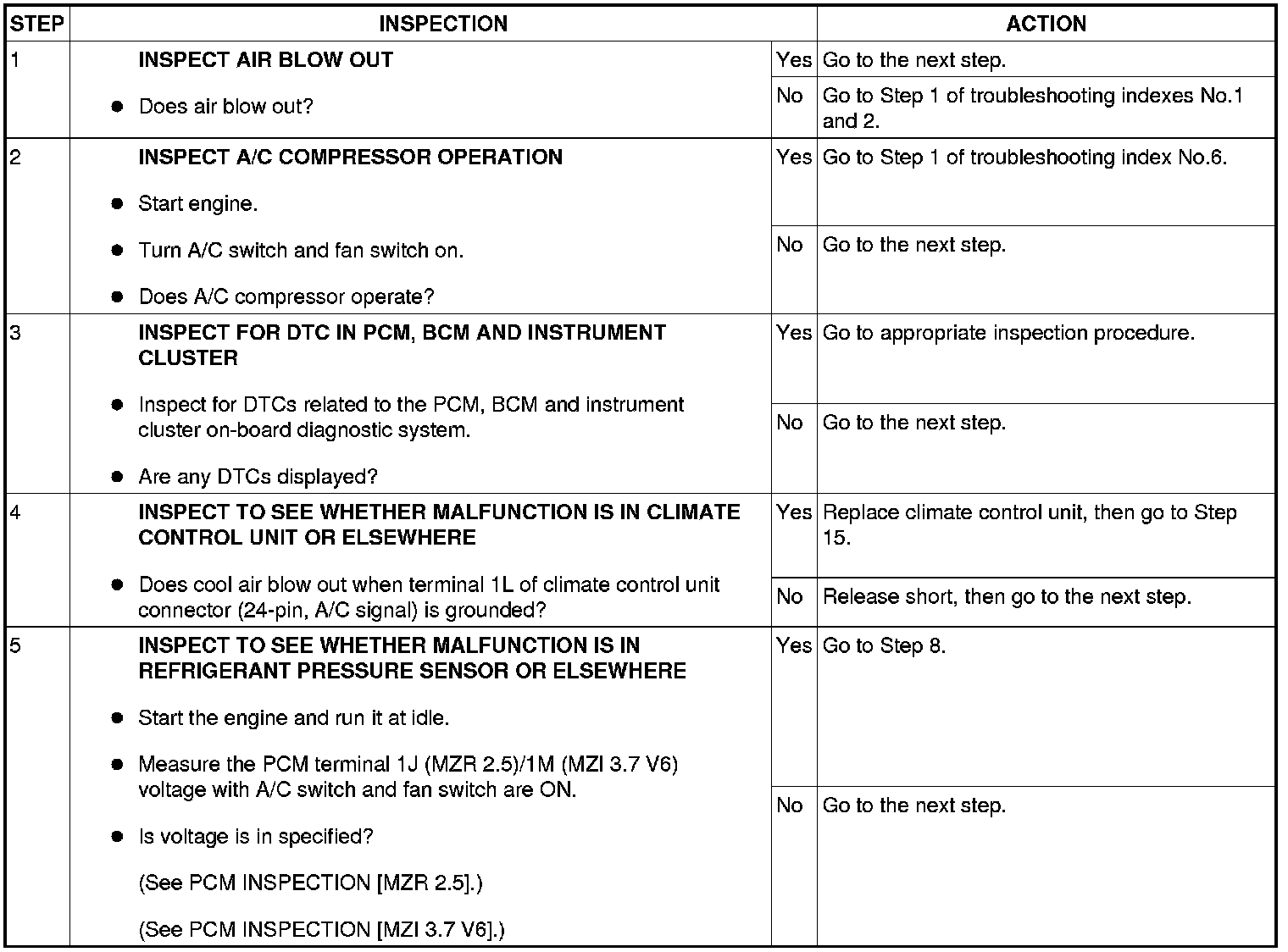

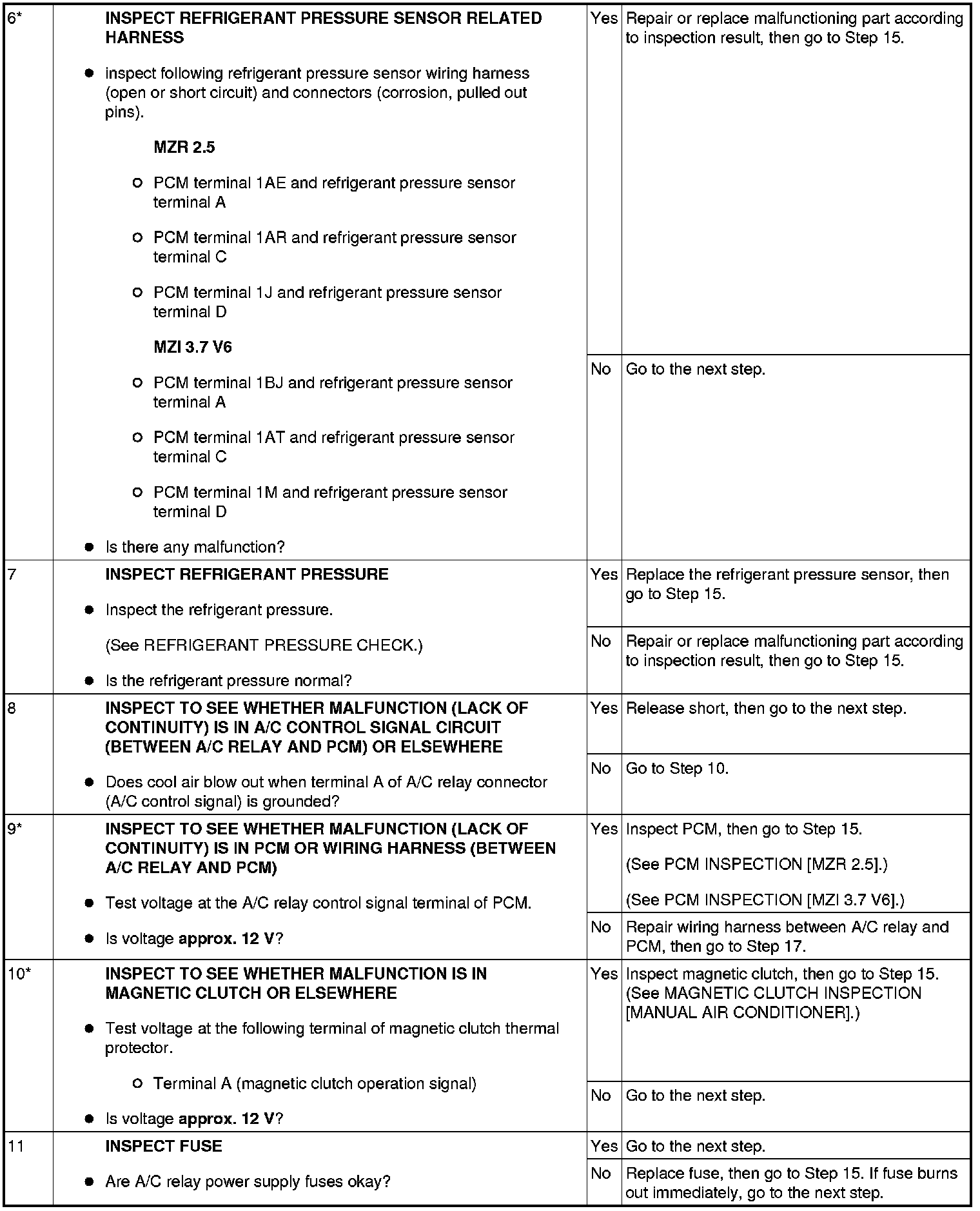

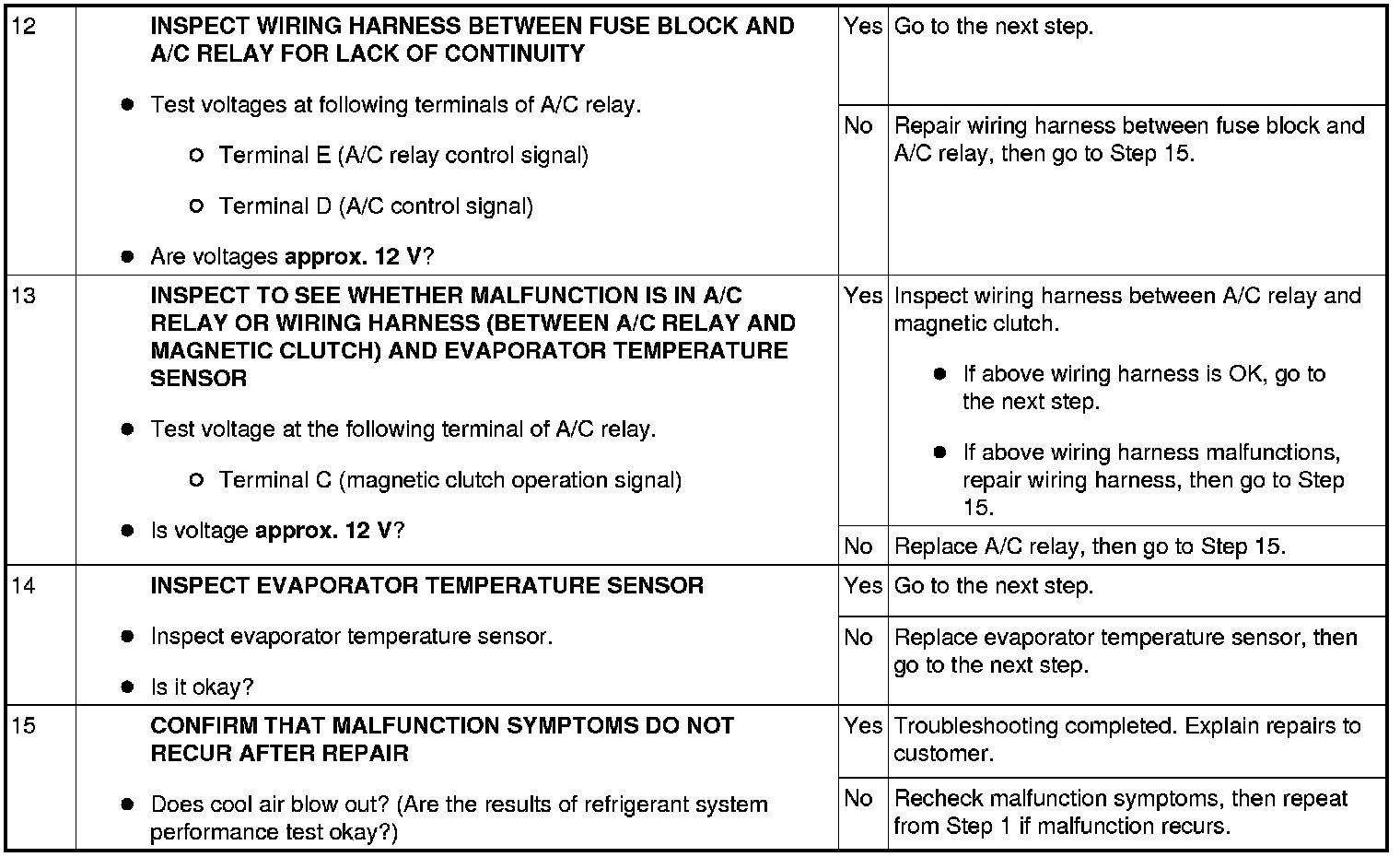

Diagnostic procedure
