Blind Spot Monitoring (BSM) Wiring Diagram - Blind Spot Monitoring (BSM)
Blind Spot Monitoring (BSM) Wiring Diagram - Blind Spot Monitoring (BSM)

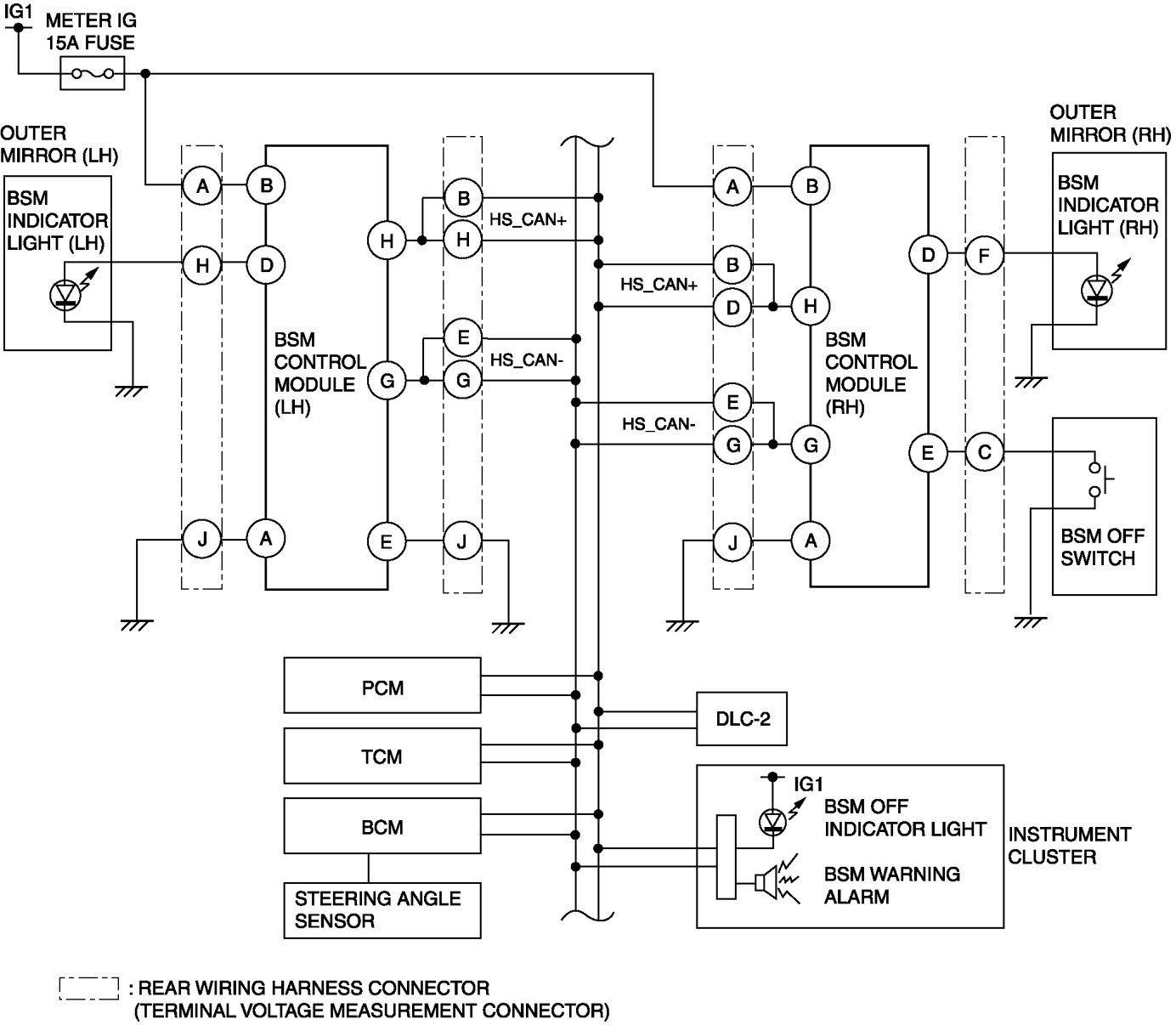

BLIND SPOT MONITORING (BSM) WIRING DIAGRAM [BLIND SPOT MONITORING (BSM)]
