Antenna Feeder No. 1 Removal/Installation
ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Glove compartment Service and Repair
b. Dashboard under cover Dashboard Under Cover Removal/Installation
c. Front scuff plates Front Scuff Plate Removal/Installation
d. Front side trims Front Side Trim Removal/Installation
e. Upper panel Upper Panel Removal/Installation
f. Decoration panel Decoration Panel Removal/Installation
g. Shift knob (MTX) Locations
h. Shift panel Shift Panel Removal/Installation
i. Center panel lower Center Panel Lower Removal/Installation
j. Climate control unit Climate Control Unit Removal/Installation - Full-Auto Air Conditioner Climate Control Unit Removal/Installation - Manual Air Conditioner
k. Rear console Rear Console Removal/Installation
l. Hood release lever Service and Repair
m. Lower panel Lower Panel Removal/Installation
n. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation
o. Steering wheel Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
p. Column cover Service and Repair
q. Combination switch Removal and Replacement
r. Meter hood Meter Hood Removal/Installation
s. Instrument cluster Removal and Replacement
t. Center panel upper Center Panel Upper Removal/Installation
u. Audio unit (With audio system) Audio Unit Removal/Installation
v. Car-navigation unit (With car-navigation system) Service and Repair
w. Steering shaft cover Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
x. Steering shaft Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
y. Side panel Side Panel Removal/Installation
z. SIRIUS satellite radio unit (With SIRIUS satellite radio system) Service and Repair
aa. Passenger-side air bag module Passenger-Side Air Bag Module Removal/Installation
ab. A-pillar trim A-Pillar Trim Removal/Installation
ac. Dashboard Dashboard Removal/Installation

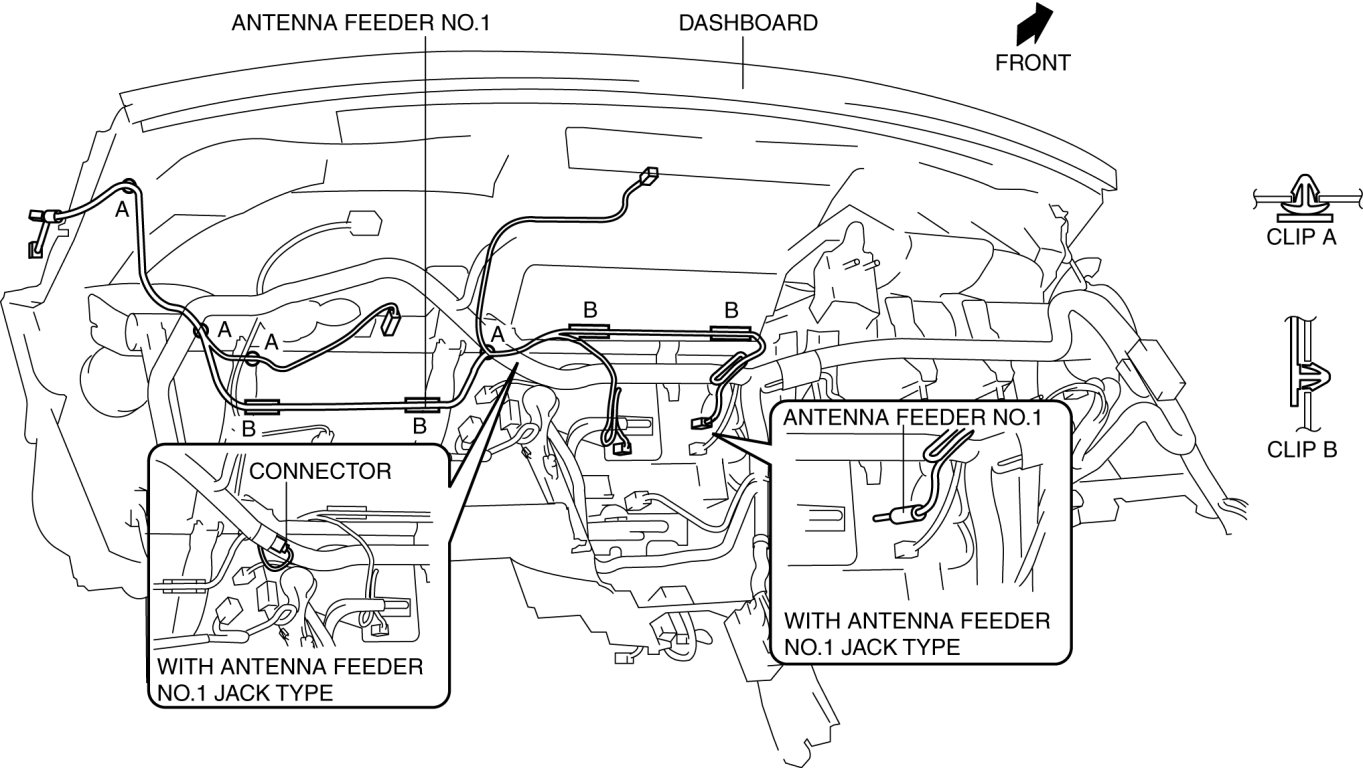

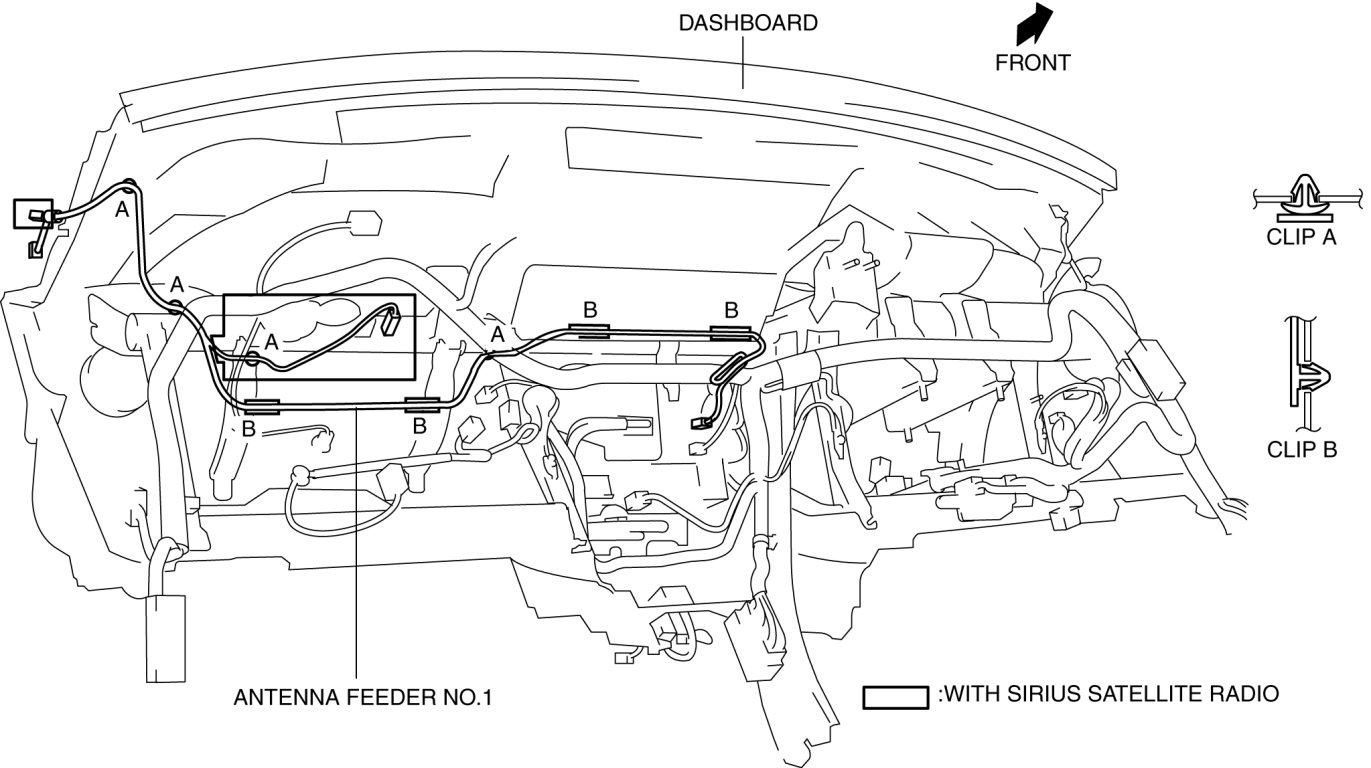

3. Remove the clips A and B.
4. Remove the antenna feeder No.1.
5. Install in the reverse order of removal.
With audio system
With car-navigation system
