Sunroof / Moonroof Switch: Testing and Inspection




SUNROOF SWITCH INSPECTION

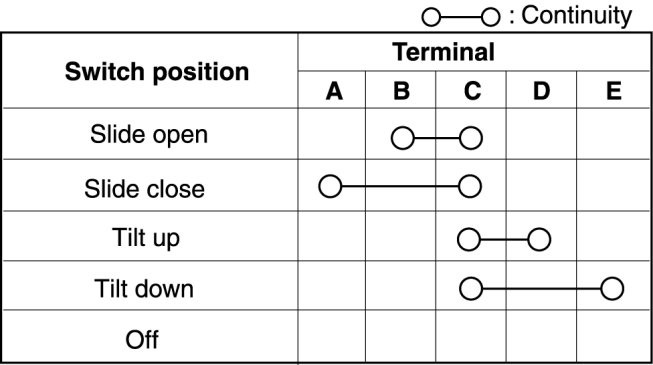

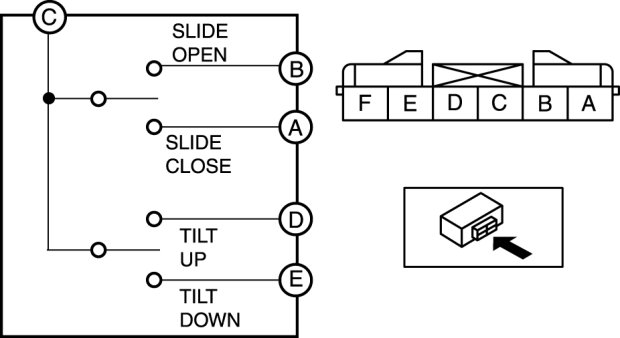

1. Inspect for continuity between the sunroof switch terminals using an ohmmeter.






- If not as specified, replace the sunroof switch.
