Power Seat Switch: Testing and Inspection

POWER SEAT SWITCH INSPECTION

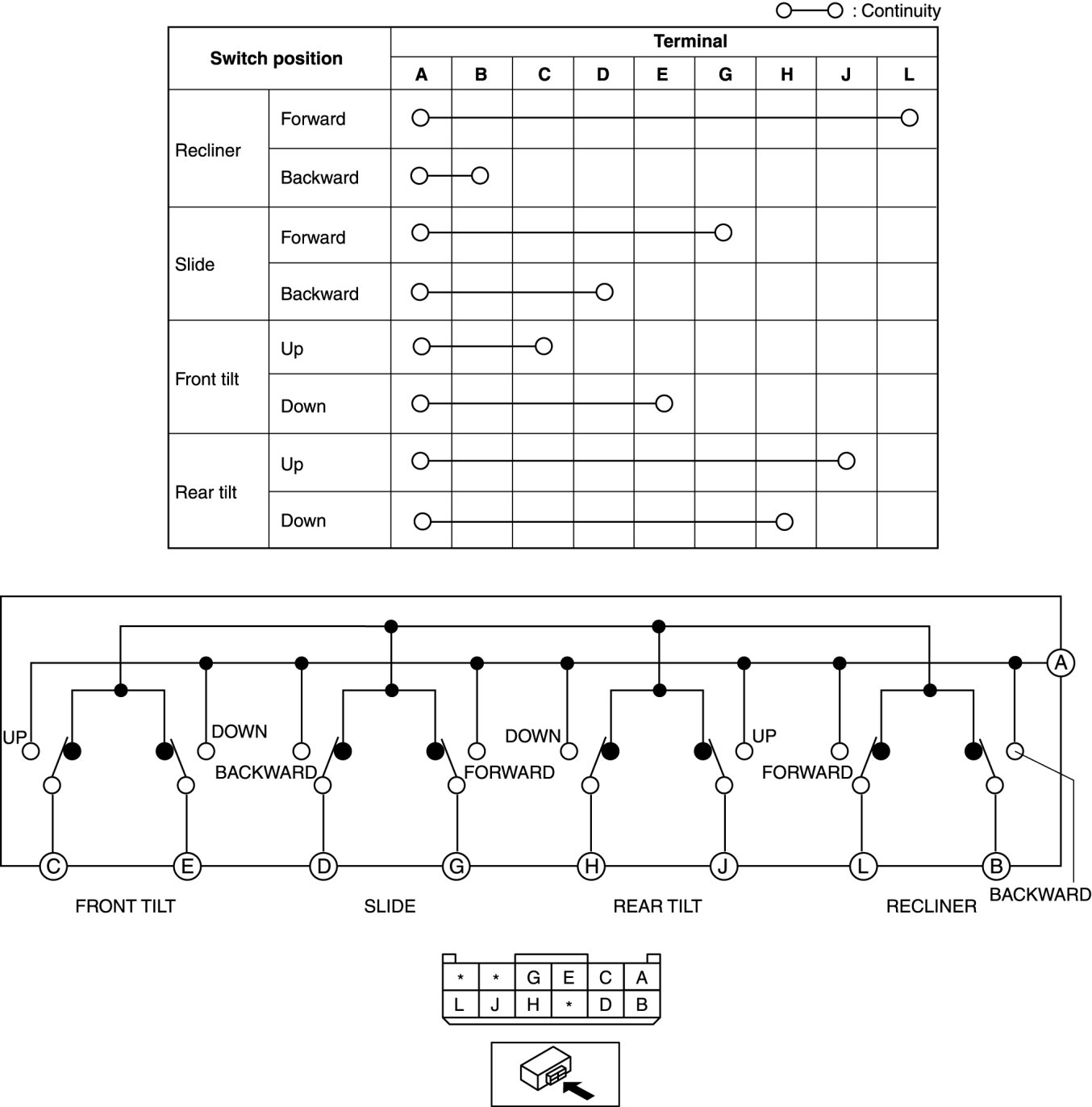

Vehicles With Power Seat Control Module

1. Disconnect the power seat switch connector.

2. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

- If not as specified, replace the power seat switch.

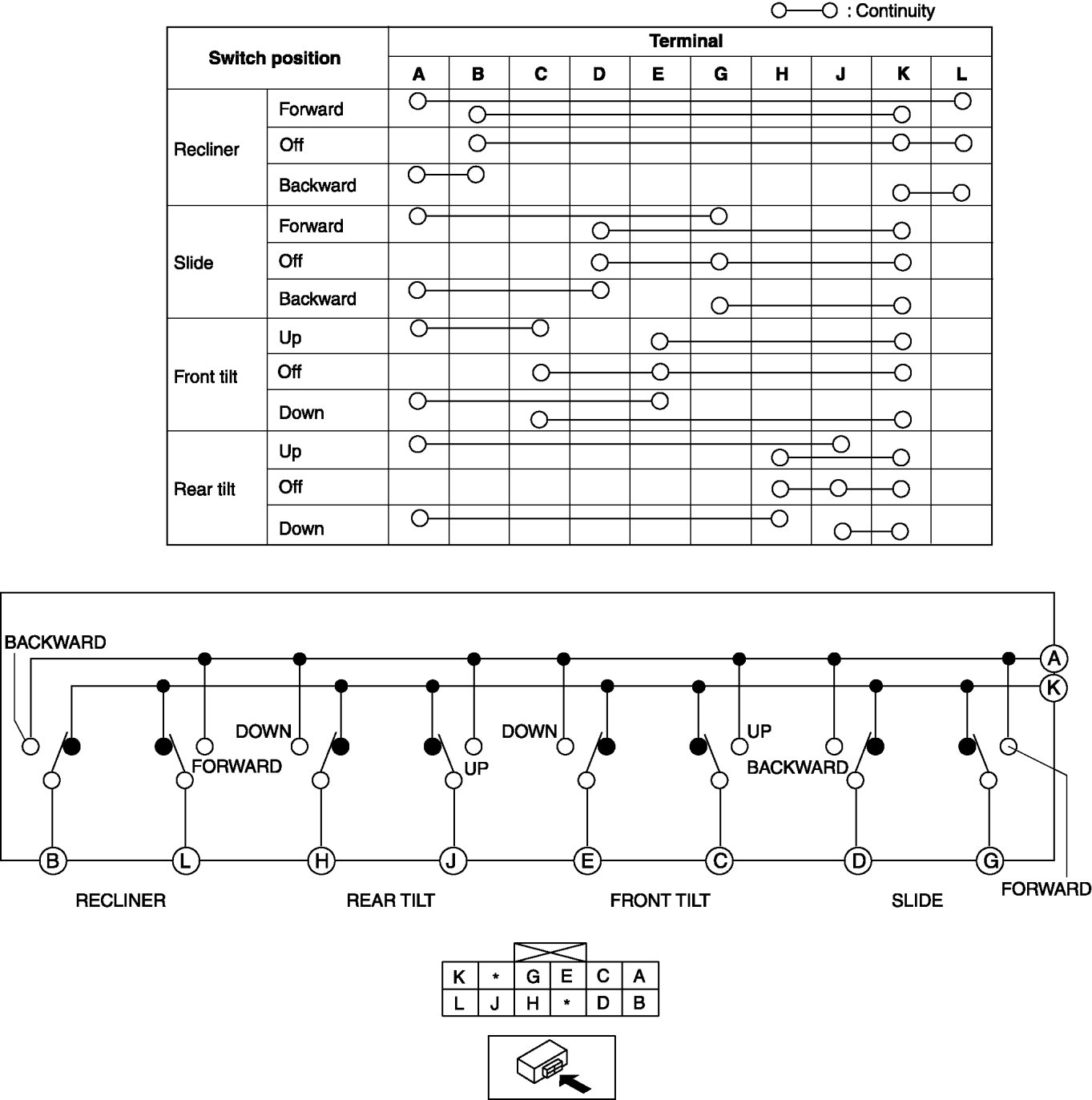

Vehicles Without Power Seat Control Module

1. Disconnect the power seat switch connector.

2. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

- If not as specified, replace the power seat switch.
