Home >> Mazda >> 2011 >> 3 L4-2.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 6 Instrument Cluster Illumination Does Not Illuminate

No. 6 Instrument Cluster Illumination Does Not Illuminate

NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER]

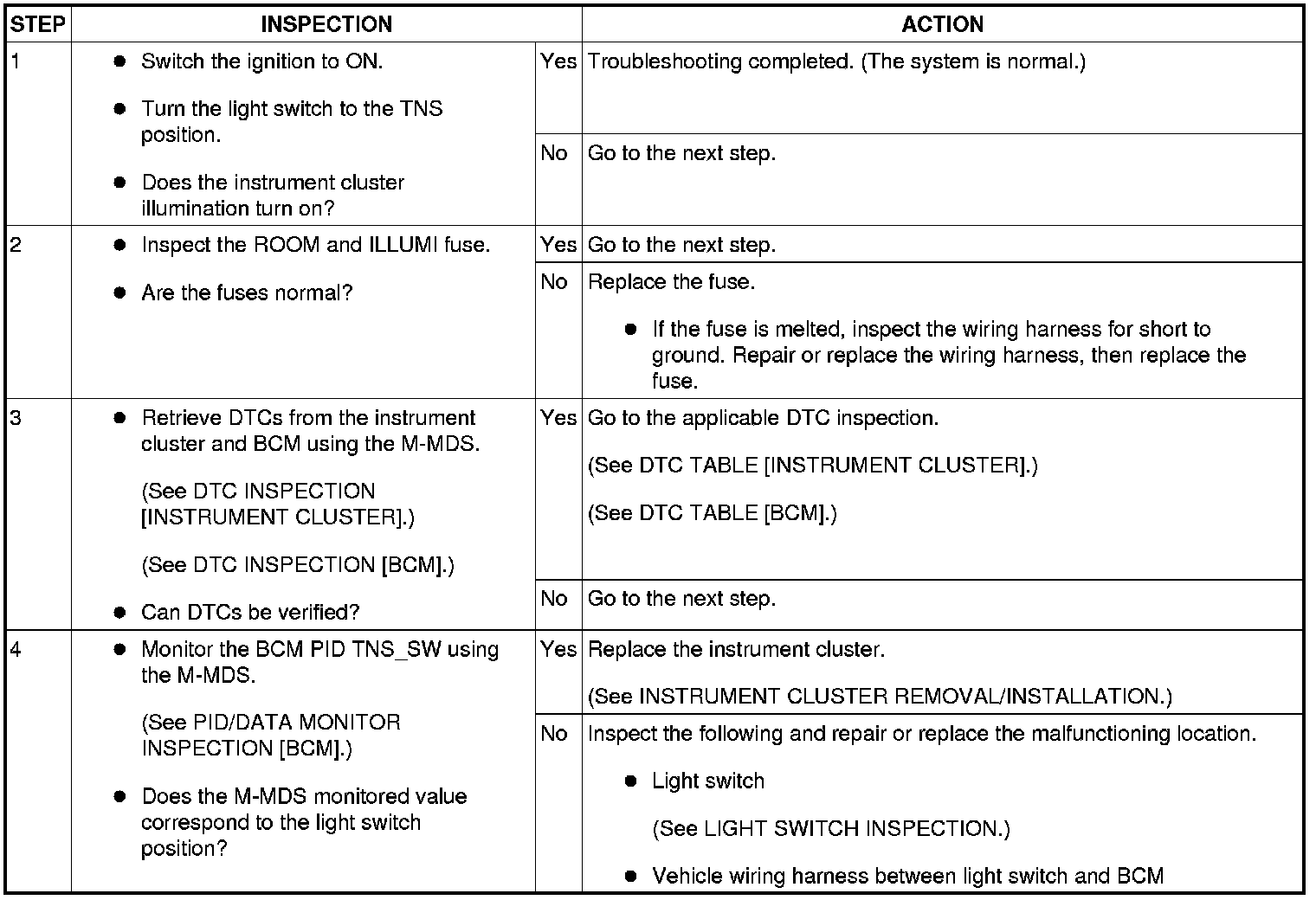

Diagnostic procedure
