Seat Position Sensor: Service and Repair

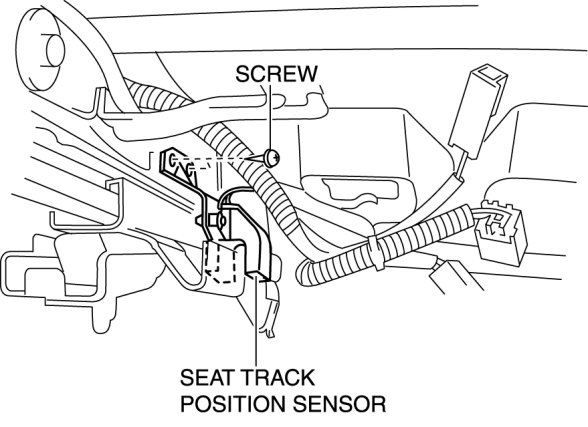

SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1min or more.

3. Remove the front driver's seat Removal and Replacement






4. Remove the screws.

5. Remove the seat track position sensor.

6. Install in the reverse order of removal.
