Home >> Mazda >> 2011 >> 2 L4-1.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 9 Engine Coolant Temperature Warning / Indicator Light Flashes >> High Engine Coolant Temperature Warning Light Illuminates Or Flashes Continuously - Instrument Cluster

High Engine Coolant Temperature Warning Light Illuminates Or Flashes Continuously - Instrument Cluster




NO. 9 HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT ILLUMINATES OR FLASHES CONTINUOUSLY [INSTRUMENT CLUSTER]

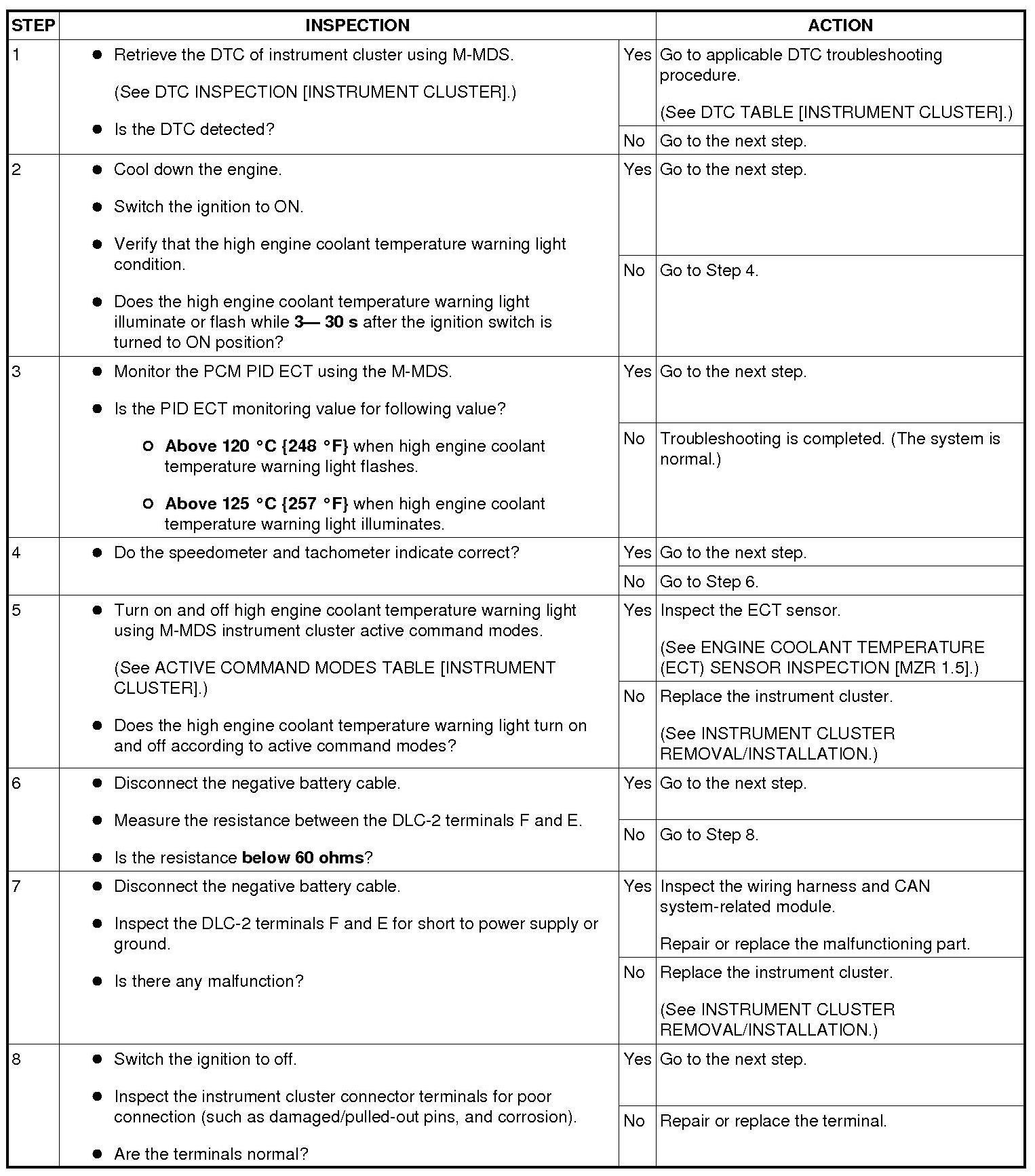

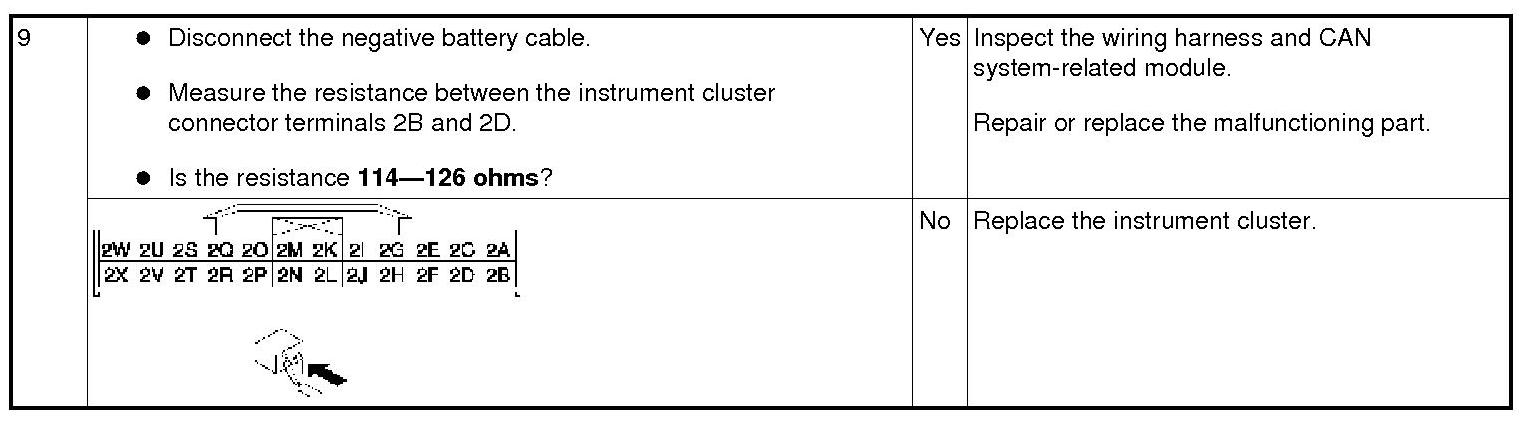

Diagnostic procedure
