Connector Locations

Driver-Side Side Air Bag Sensor No.1:

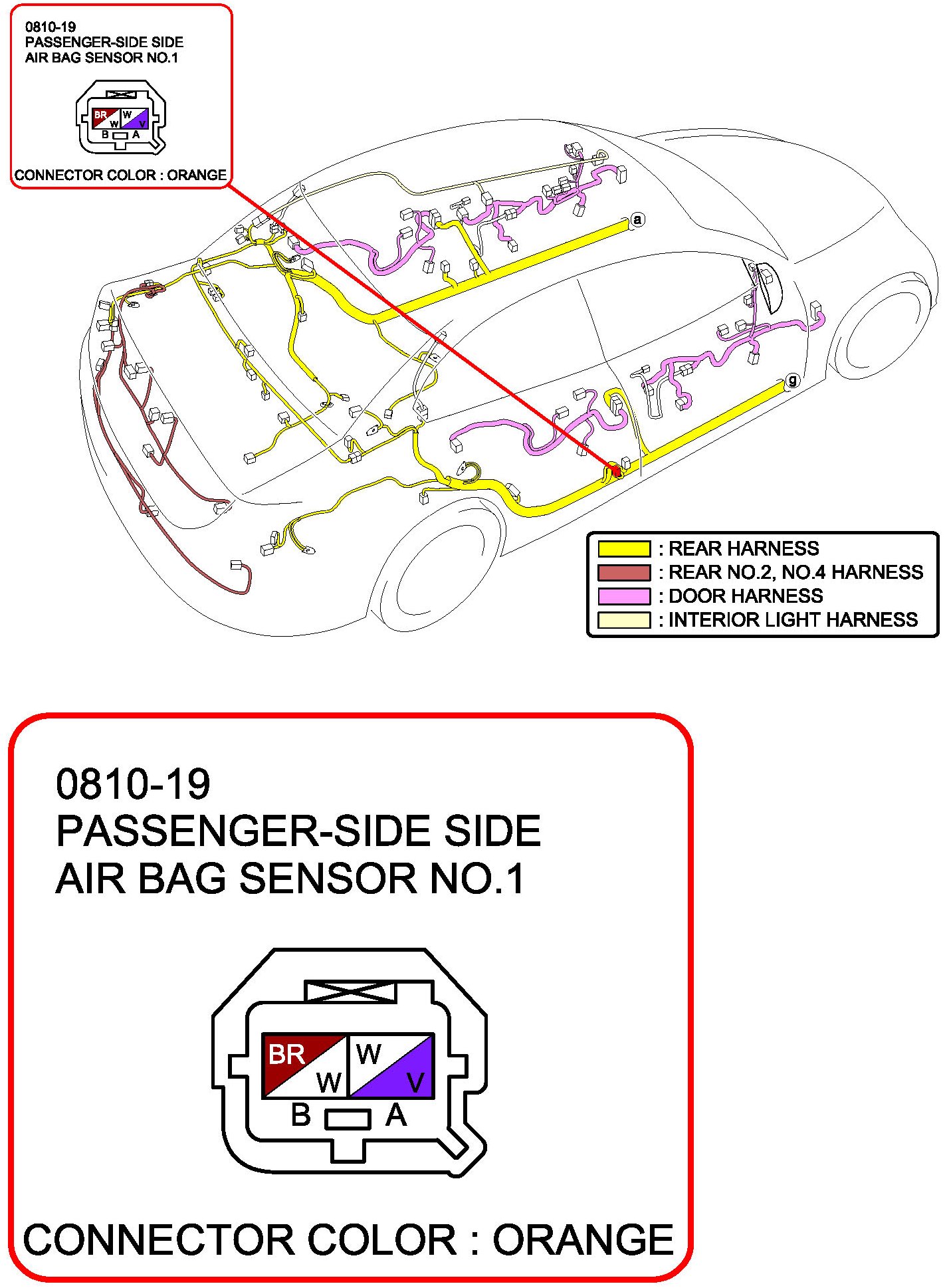

Passenger-Side Side Air Bag Sensor No.1:






Driver-Side Side Airbag Sensor No.1:

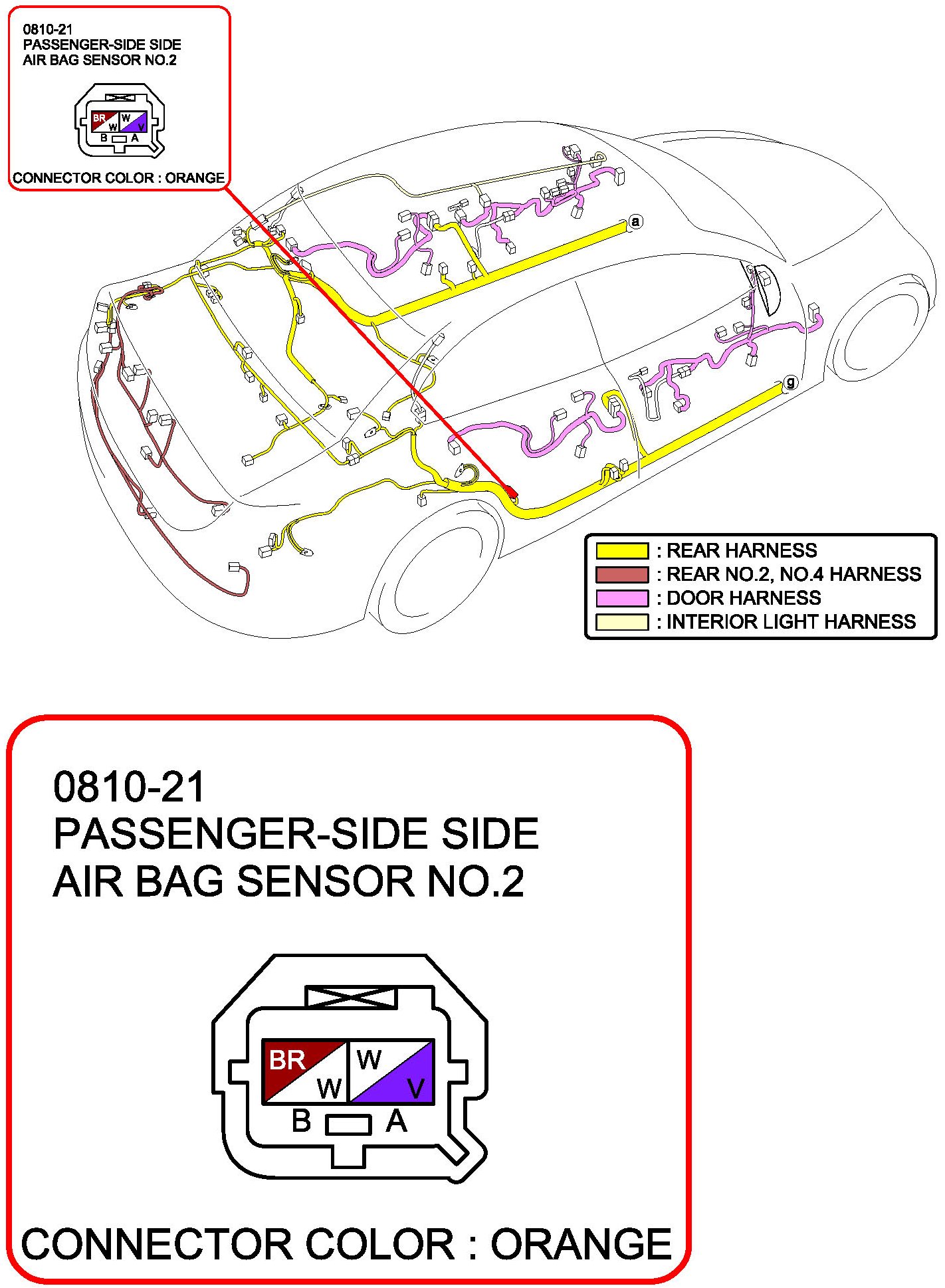

Passenger-Side Side Air Bag Sensor No.2:

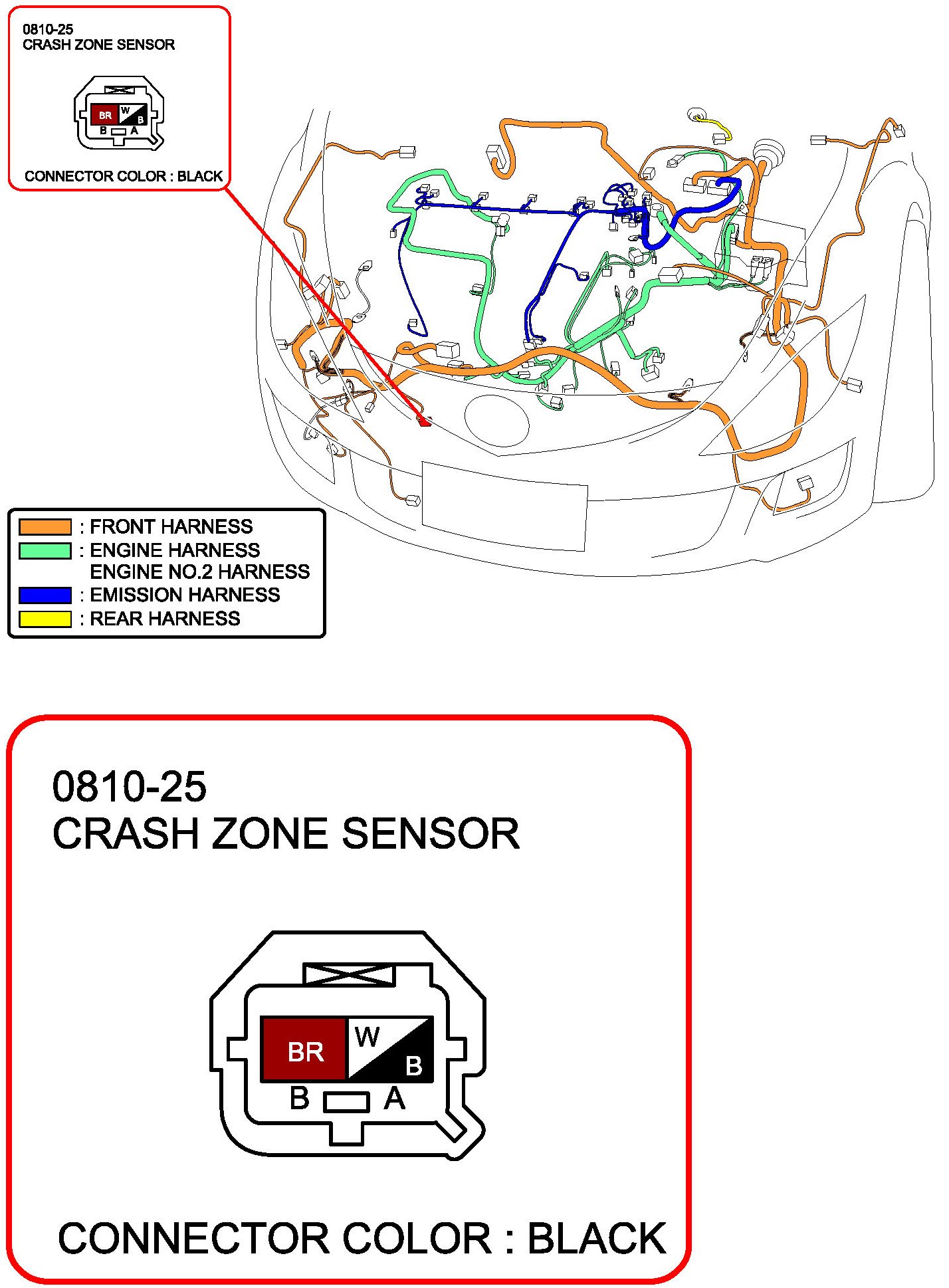

Crash Zone Sensor:
