Connector Locations

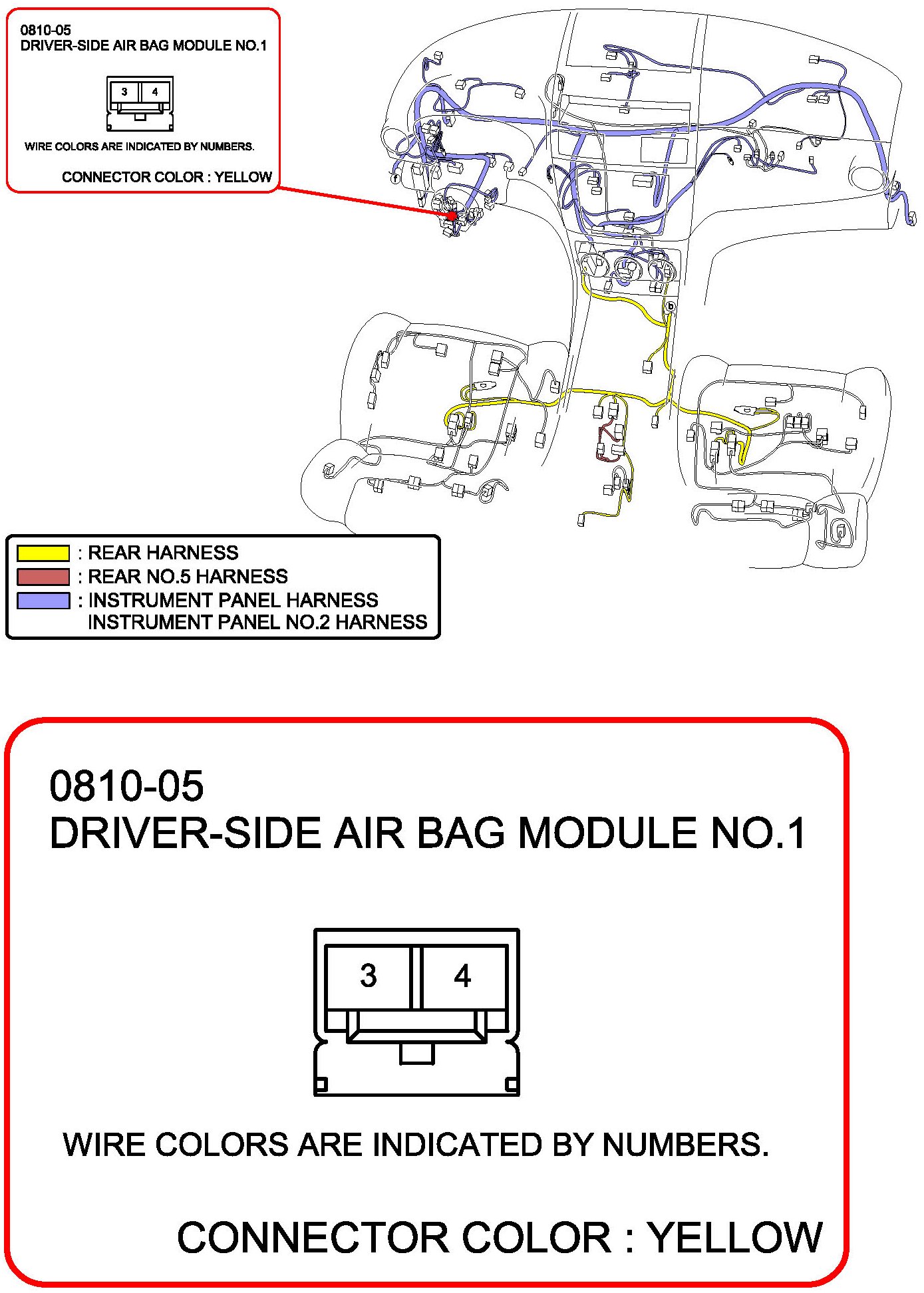

Driver-Side Air Bag Module No.1:

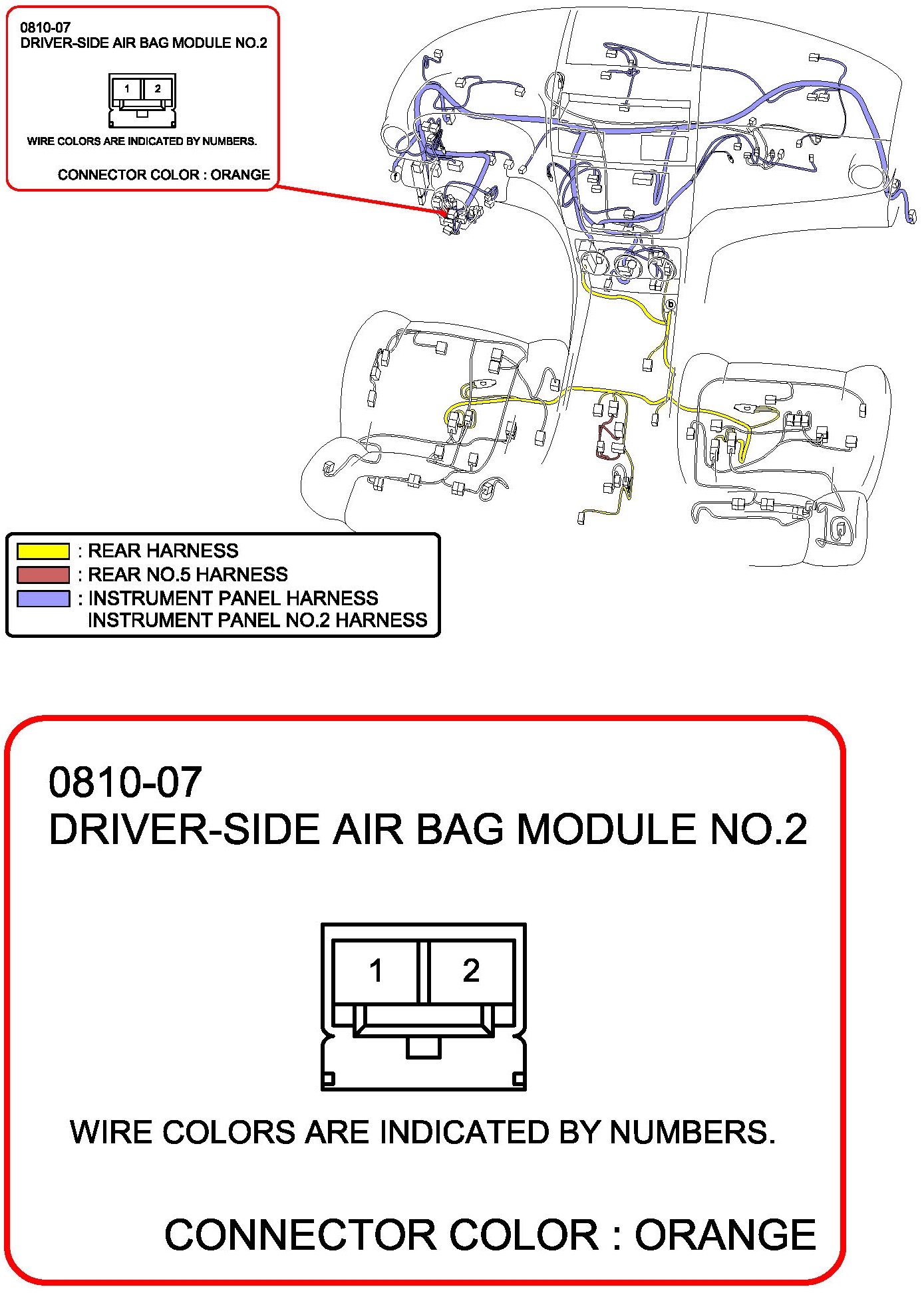

Driver-Side Air Bag Module No.2:






Driver-Side Side Air Bag Module:

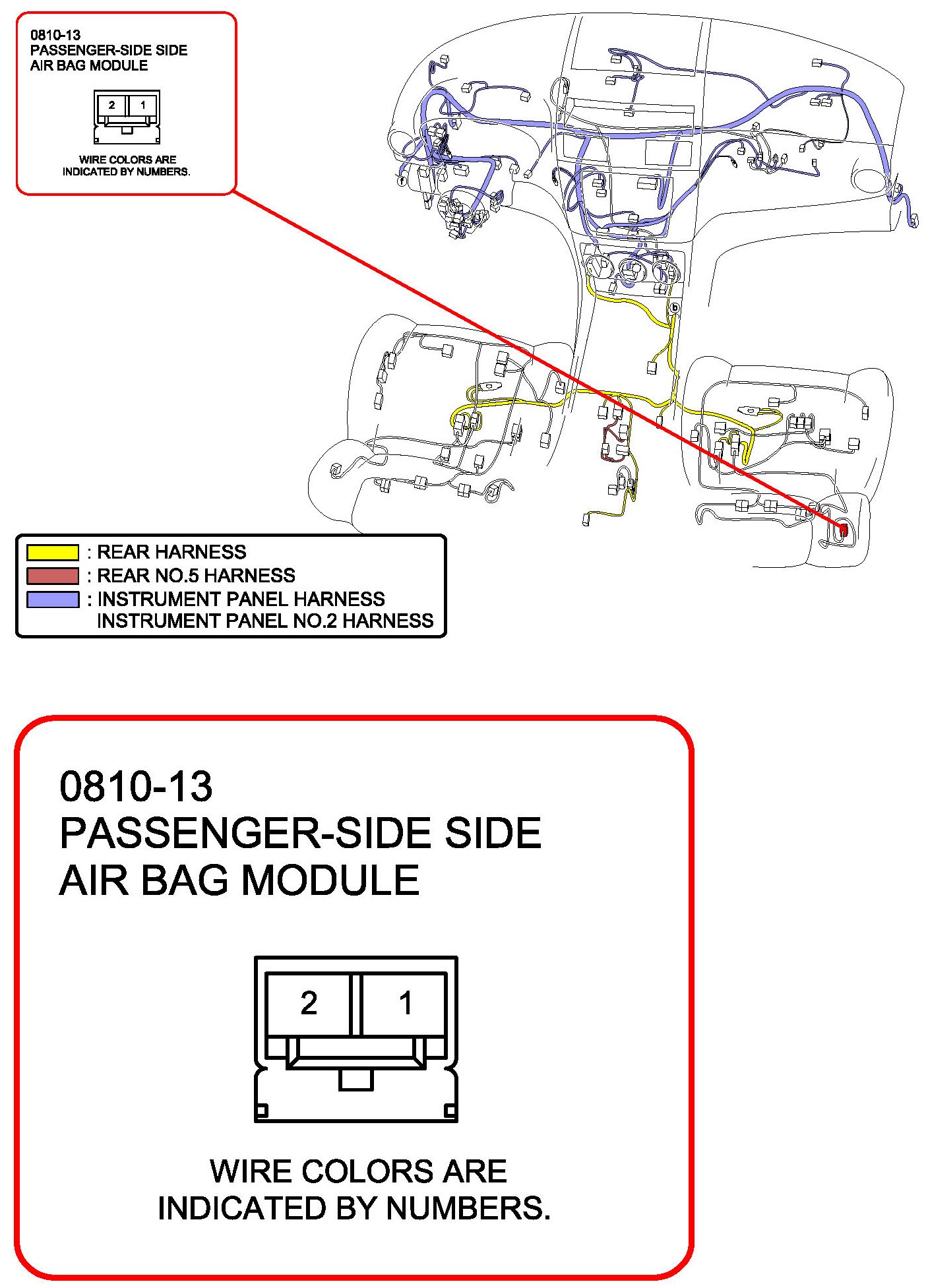

Passenger-Side Side Air Bag Module:

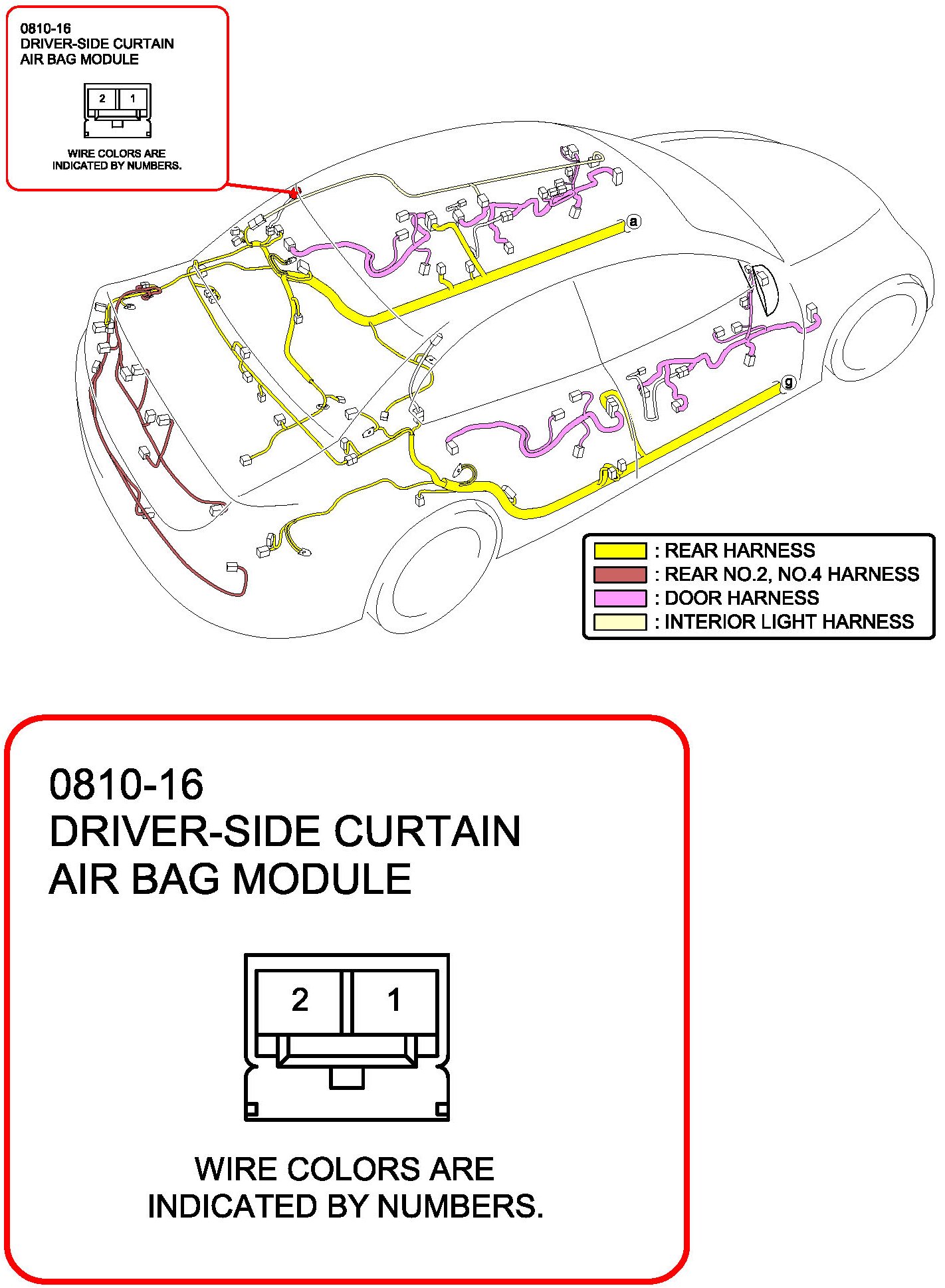

Driver-Side Curtain Air Bag Module:

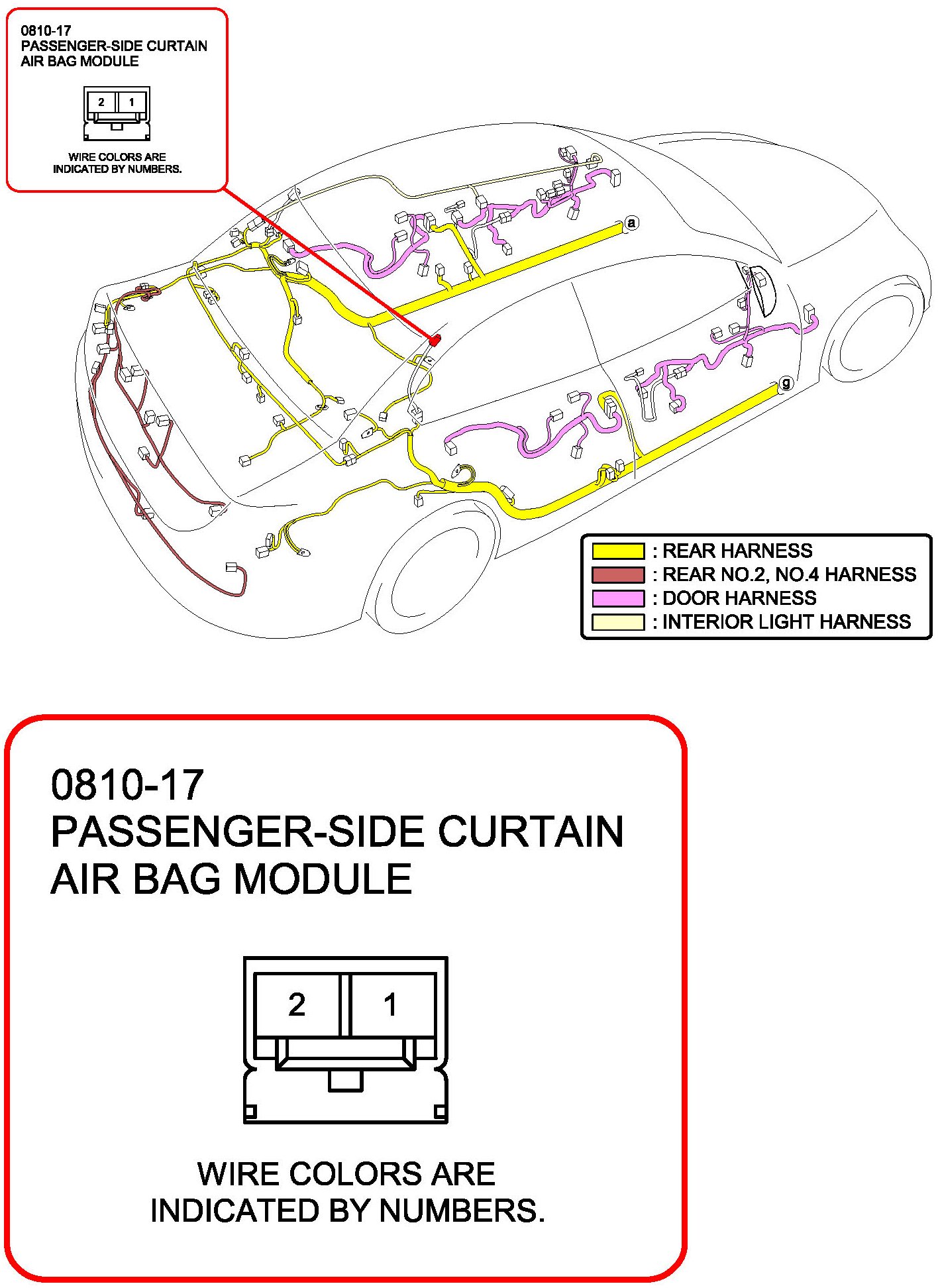

Passenger-Side Curtain Air Bag Module:
