No.7 Air From Vents Not Cold Enough - Full-Auto Air Conditioner




NO.7 AIR FROM VENTS NOT COLD ENOUGH [FULL-AUTO AIR CONDITIONER]

Description/Possible Cause:





Diagnostic procedure

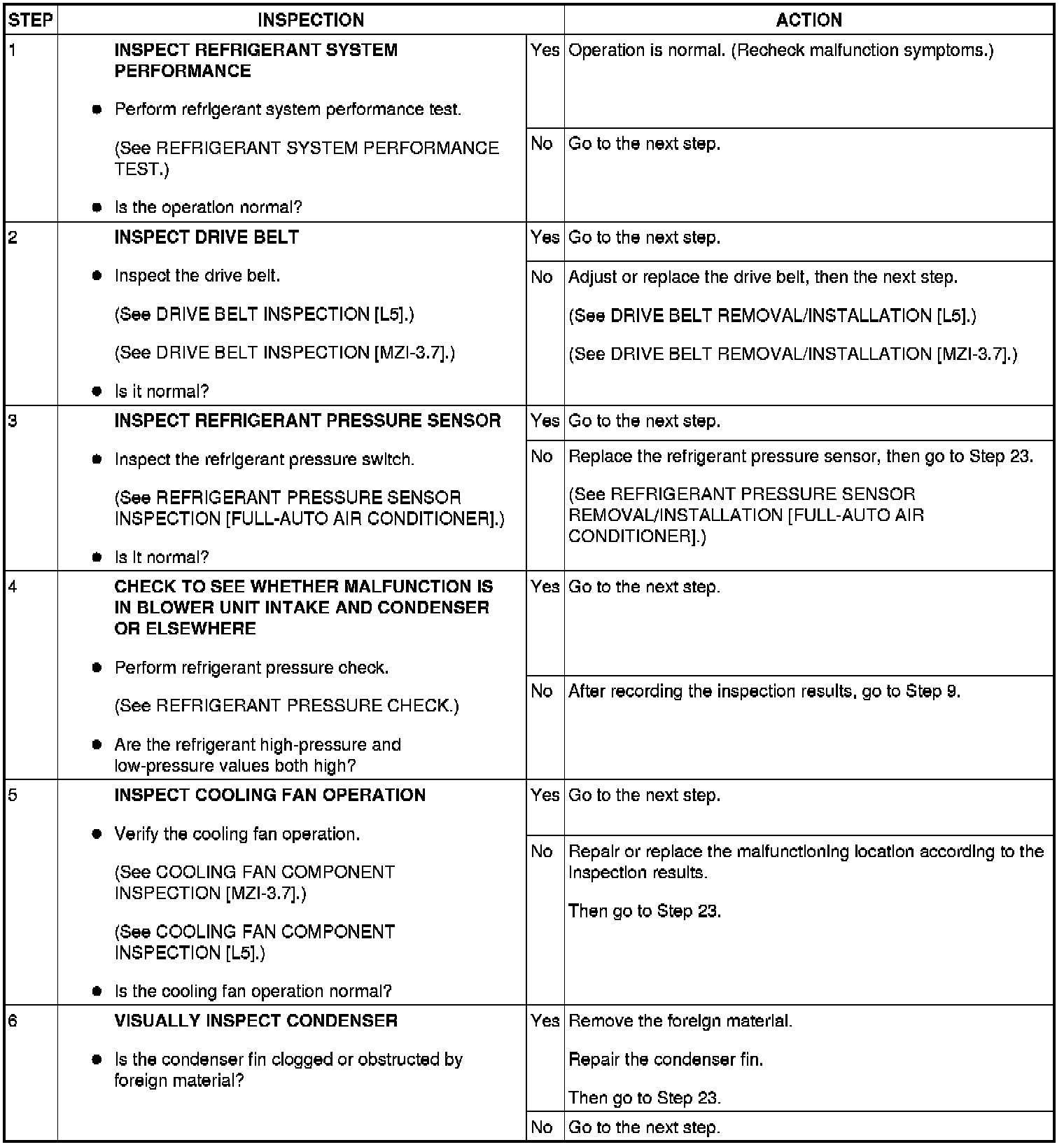

Step 1-Step 6:

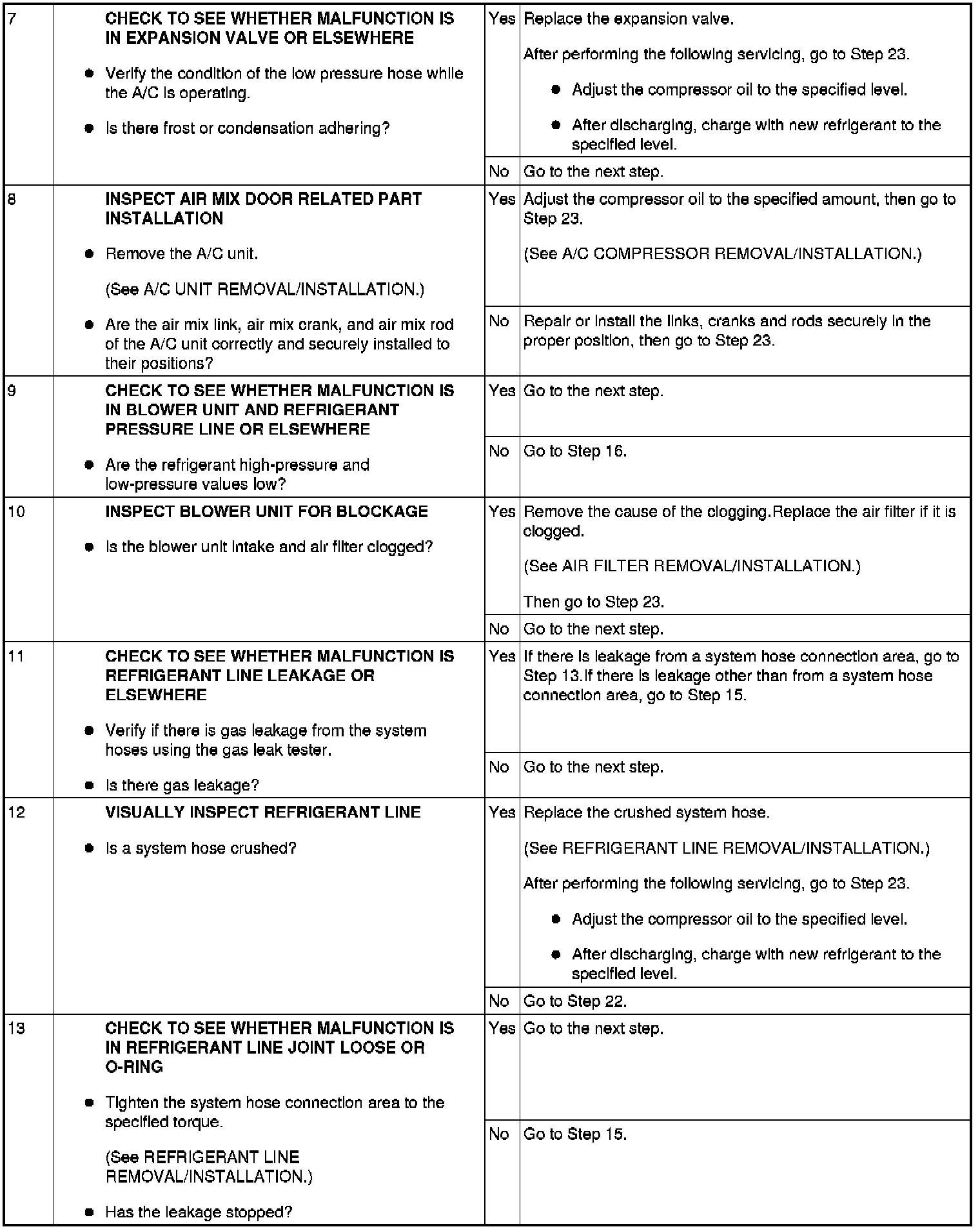

Step 7-Step 13:

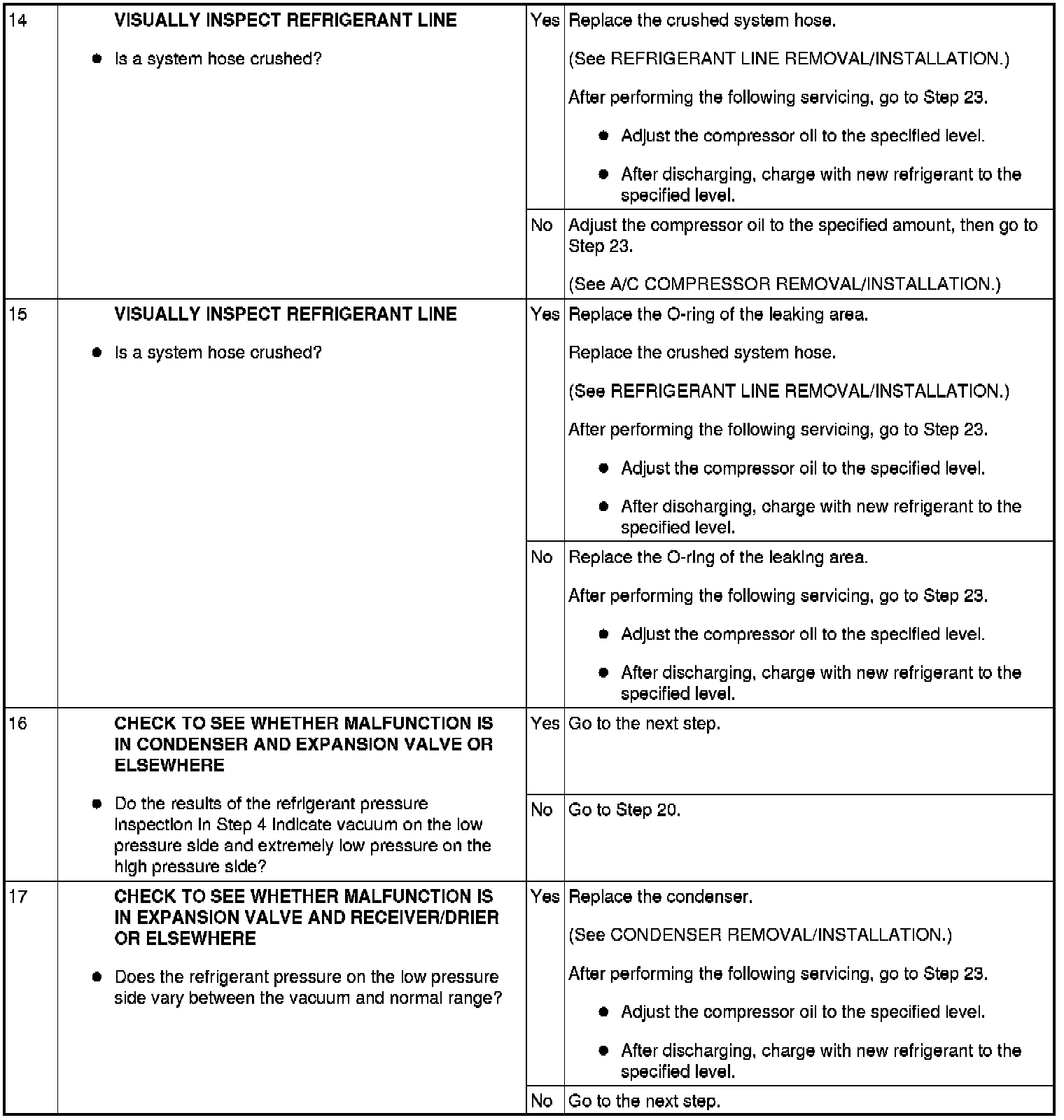

Step 14-Step 17:

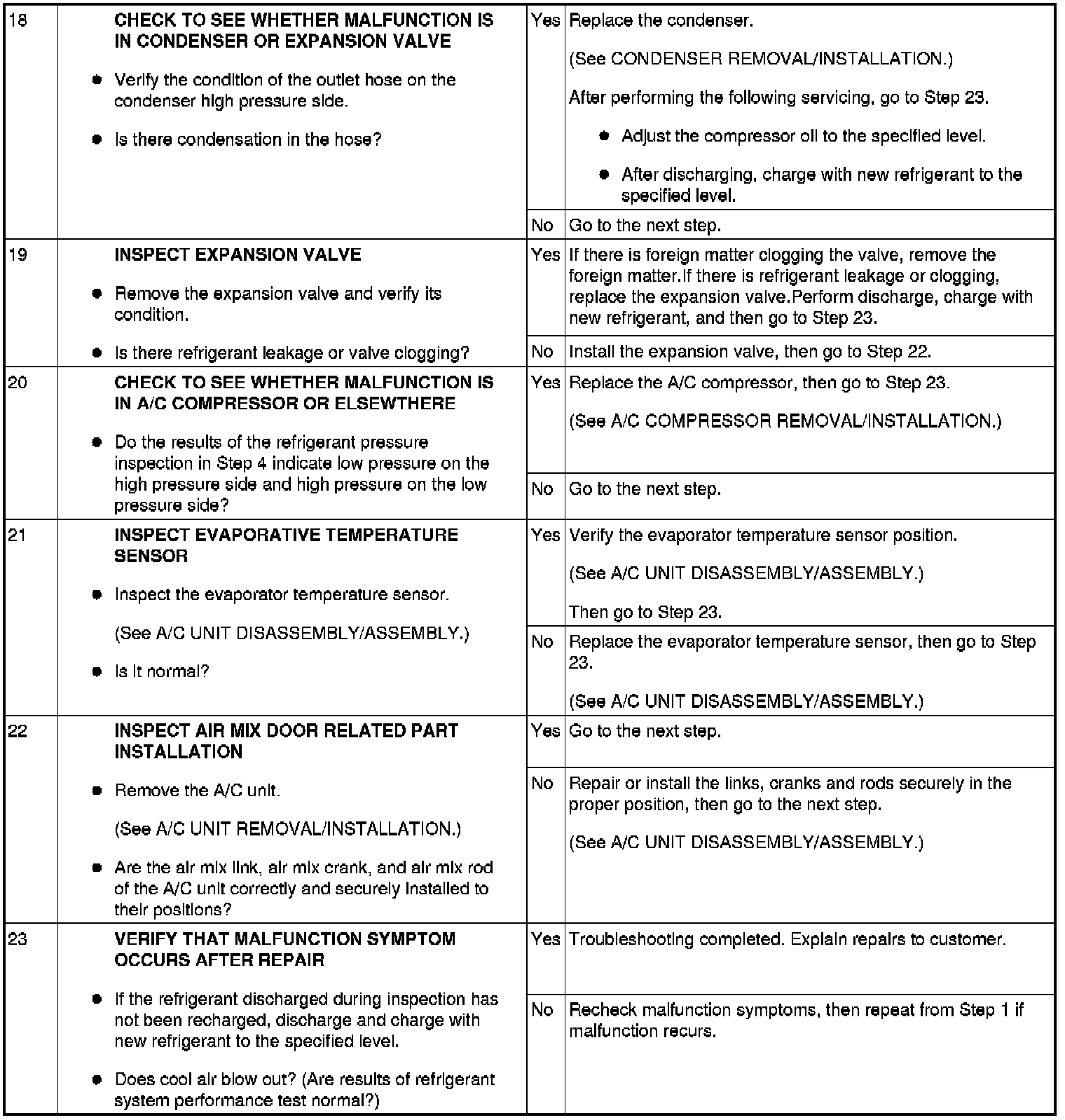

Step 18-Step 23:
